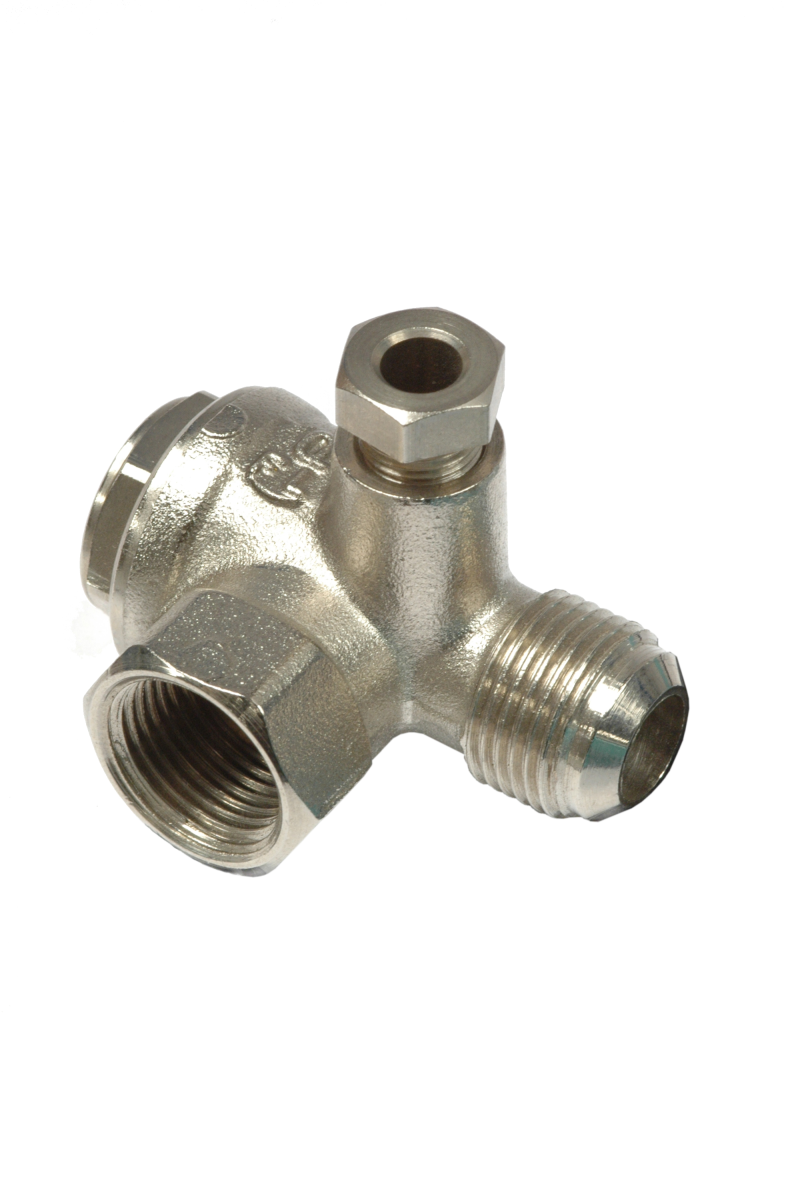

NON RETURN VALVE FEMALE - MALE HORIZONTAL
Cod: 1000

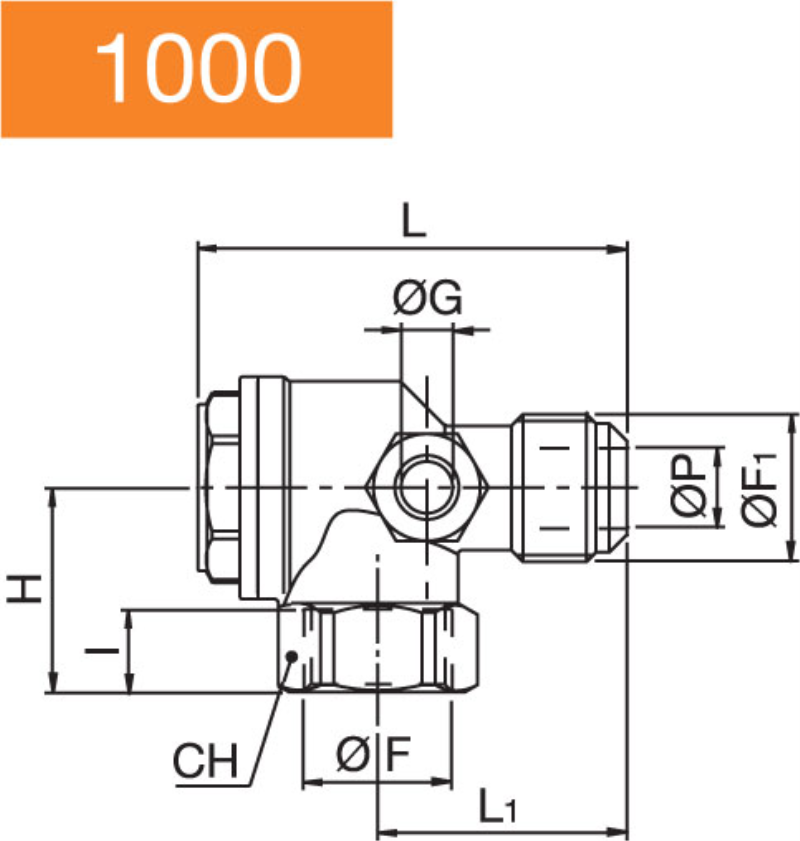

| Article | F | F1 | P | I | G | H | L | L1 | CH | PASTILLE | SPRING | RING |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10002900 | 3/8 | 3/8 | 9 | 11 | 6 | 23 | 48.5 | 28 | 20 | Q10 NBR | M15 | OR2075 |
| 10003900 | 1/2 | 1/2 | 11 | 12.5 | 6 | 27 | 62 | 36 | 26 | Q20 VITON | M20 | A15 |
