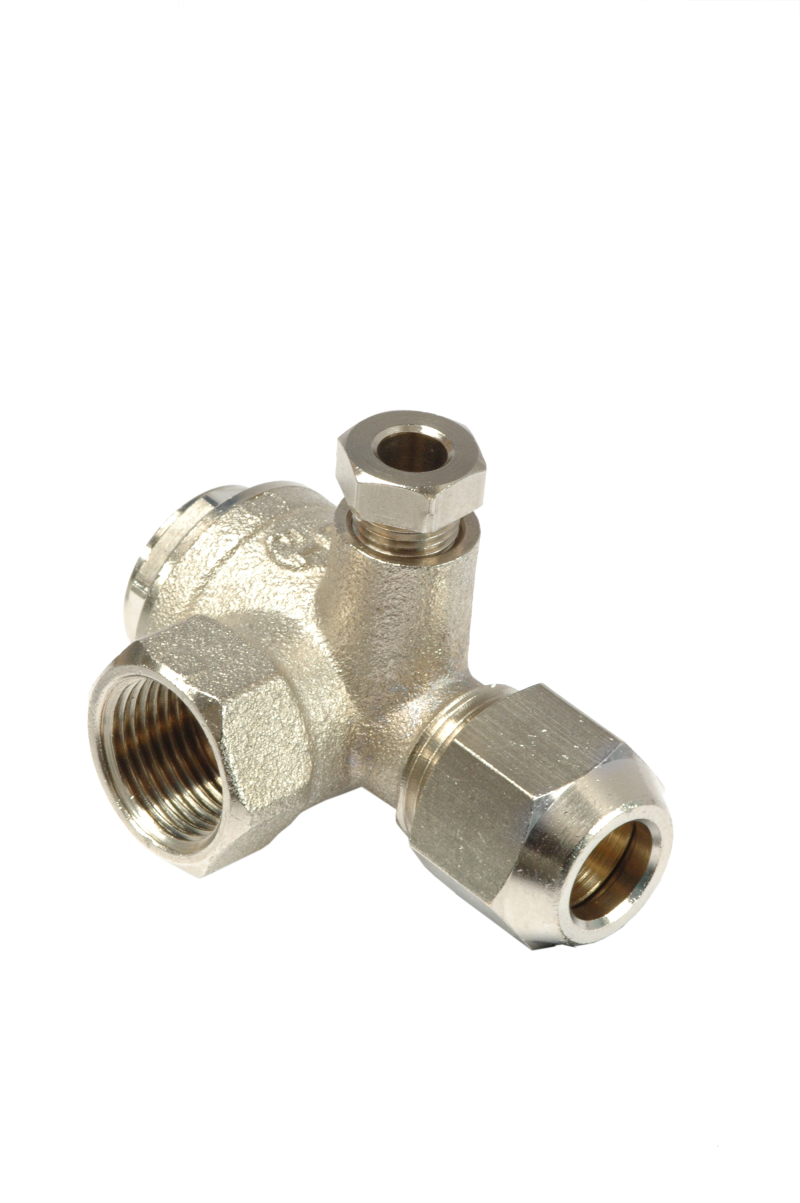

NON RETURN VALVE FEMALE HORIZONTAL WITH NUT
Cod: 1020

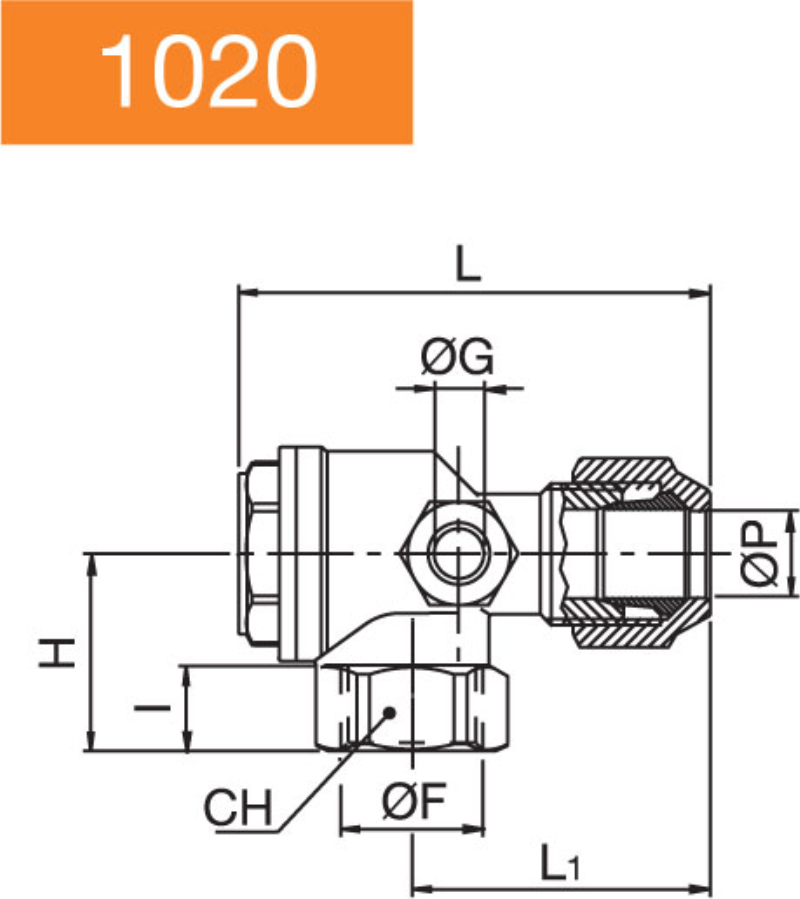

| Article | F | P | I | G | H | L | L1 | CH | PASTILLE | SPRING | RING |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10202200 | 3/8 | 8 | 11 | 6 | 23 | 57.5 | 37.5 | 20 | Q10 NBR | M15 | OR2075 |
| 10202210 | 3/8 | 10 | 11 | 6 | 23 | 55.5 | 35.5 | 20 | Q10 NBR | M15 | OR2075 |
| 10202280 | 1/2 | 12 | 12.5 | 6 | 27 | 70.5 | 45.5 | 26 | Q20 VITON | M20 | A15 |
| 10202290 | 1/2 | 14 | 12.5 | 6 | 27 | 70.5 | 45.5 | 26 | Q20 VITON | M20 | A15 |
| 10202300 | 1/2 | 15 | 12.5 | 6 | 27 | 70.5 | 45.5 | 26 | Q20 VITON | M20 | A15 |
