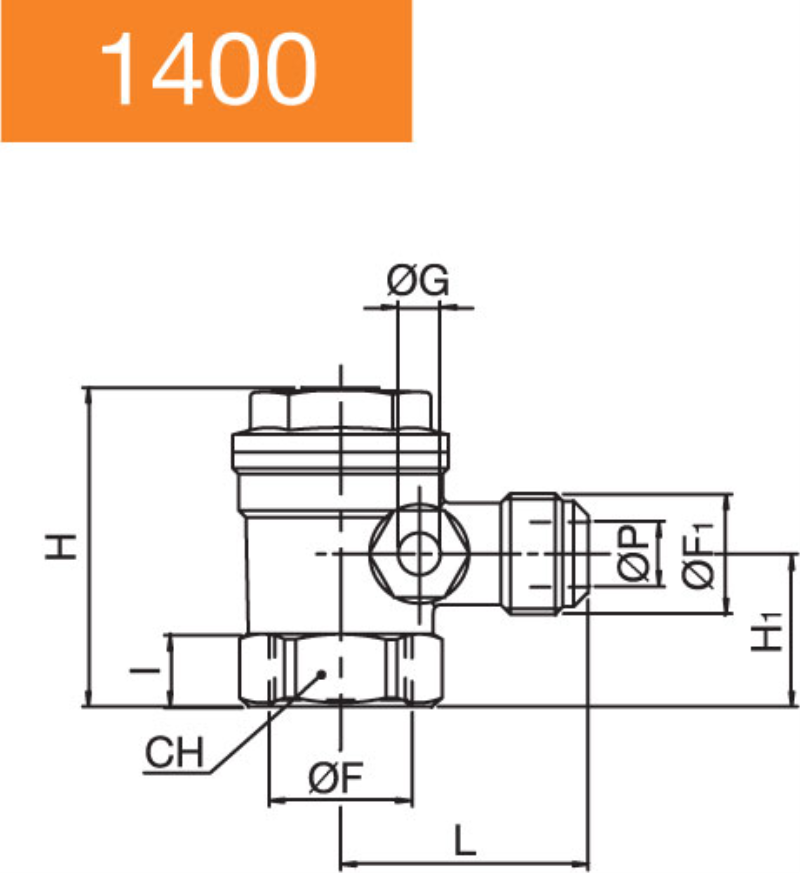

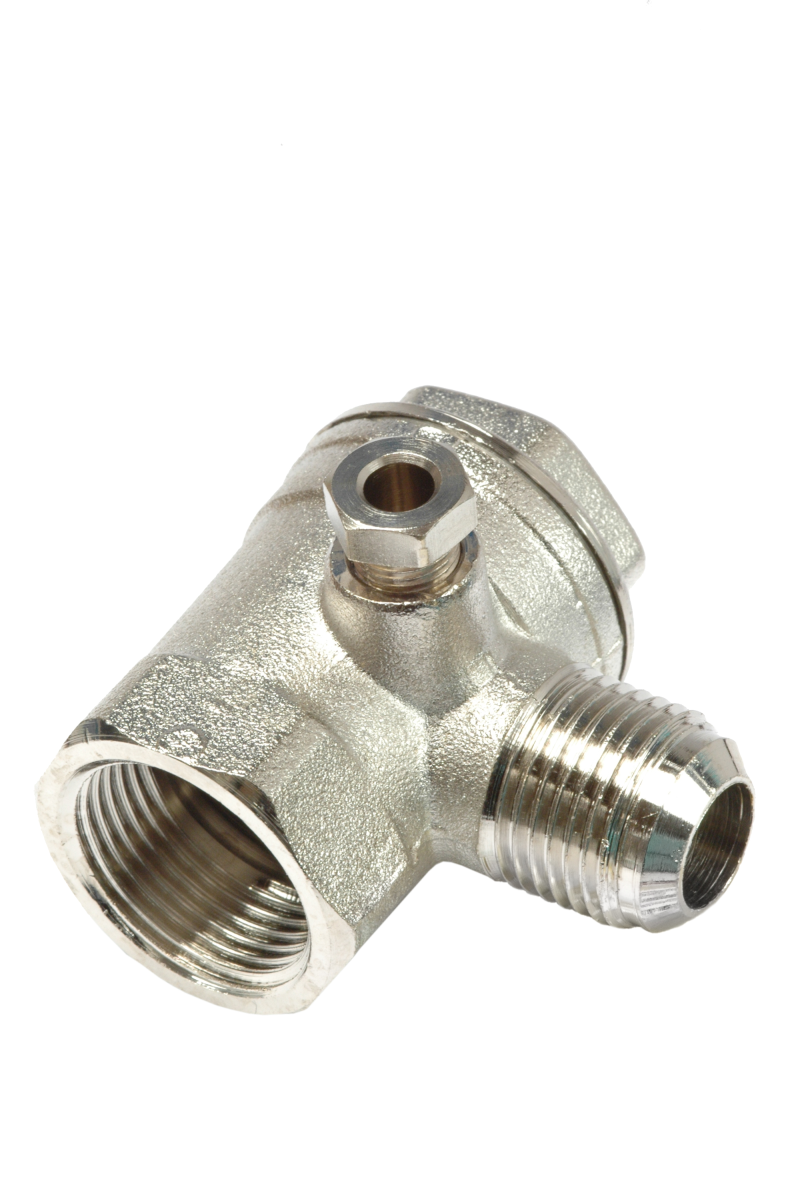

NON RETURN VALVE FEMALE-MALE VERTICAL
Cod: 1400
| Article | F | F1 | P | I | G | H | H1 | L | CH | PASTILLE | SPRING | RING AL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14003800 | 1/2 | 3/8 | 9 | 11 | 6 | 44.5 | 21.5 | 34 | 25 | Q15 NBR | M15 | A15 |
| 14003900 | 1/2 | 1/2 | 11 | 12.5 | 6 | 53.5 | 25 | 37 | 27 | Q25 VITON | M25 | A25 |
| 14004800 | 3/4 | 1/2 | 11 | 12 | 6 | 56.5 | 26.5 | 39.5 | 32 | Q25 VITON | M25 | A25 |
| 14004900 | 3/4 | 3/4 | 14 | 12 | 6 | 56.5 | 26.5 | 39.5 | 32 | Q25 VITON | M25 | A25 |
