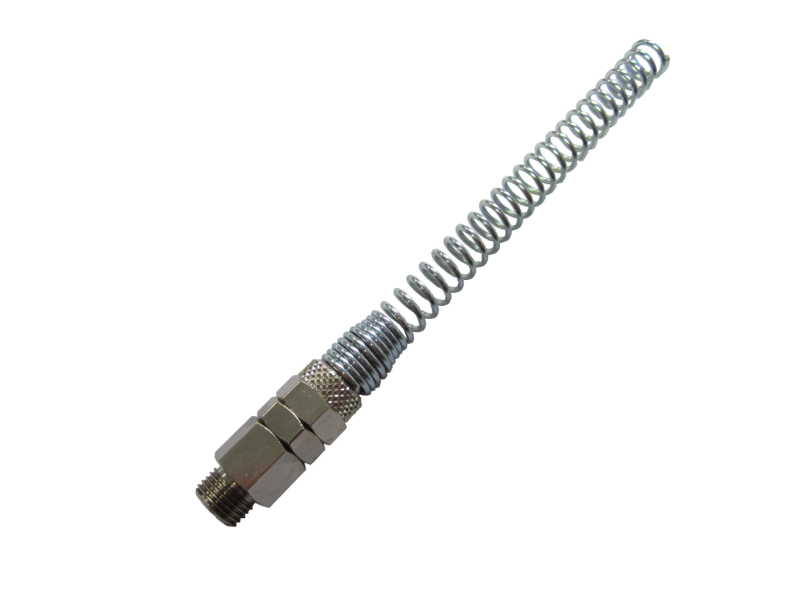

SWIVEL STRAIGHT MALE CYLINDRICAL WITH SPRING
Cod: 2951-1

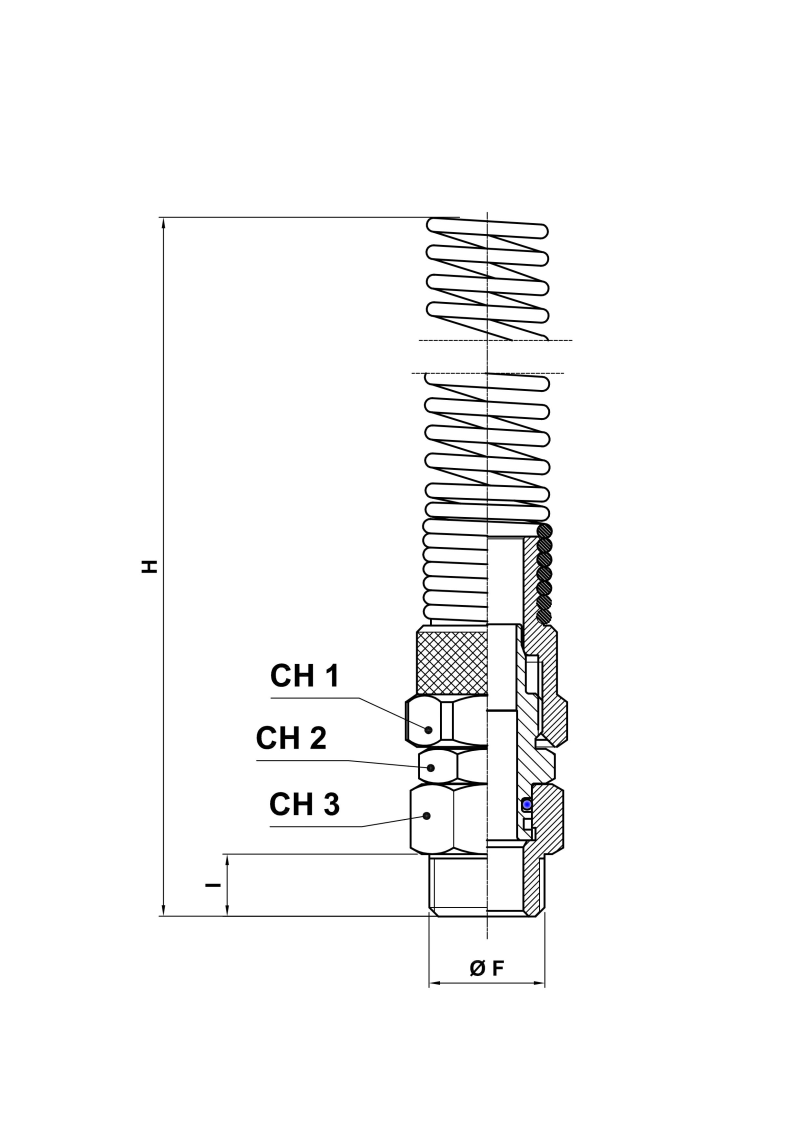

| Article | TUBO | F | I | H | CH1 | CH2 | CH3 |
|---|---|---|---|---|---|---|---|
| 29511221 | 6/4 | 1/8 | 6 | 106 | 12 | 12 | 13 |
| 29511231 | 6/4 | 1/4 | 8 | 108 | 12 | 14 | 16 |
| 29515601 | 8/5 | 1/8 | 6 | 106 | 14 | 12 | 13 |
| 29515611 | 8/5 | 1/4 | 8 | 108 | 14 | 14 | 16 |
| 29511281 | 8/6 | 1/8 | 6 | 106 | 14 | 12 | 13 |
| 29511291 | 8/6 | 1/4 | 8 | 108 | 14 | 14 | 16 |
| 29515801 | 10/6.5 | 1/4 | 8 | 112 | 16 | 14 | 16 |
| 29511351 | 10/8 | 1/4 | 8 | 112 | 16 | 14 | 16 |
| 29515901 | 12/8 | 3/8 | 9 | 123 | 18 | 17 | 19 |
| 29511401 | 12/10 | 38 | 9 | 123 | 18 | 17 | 19 |
| Temperature min./max. | -20°C | +100°C |
