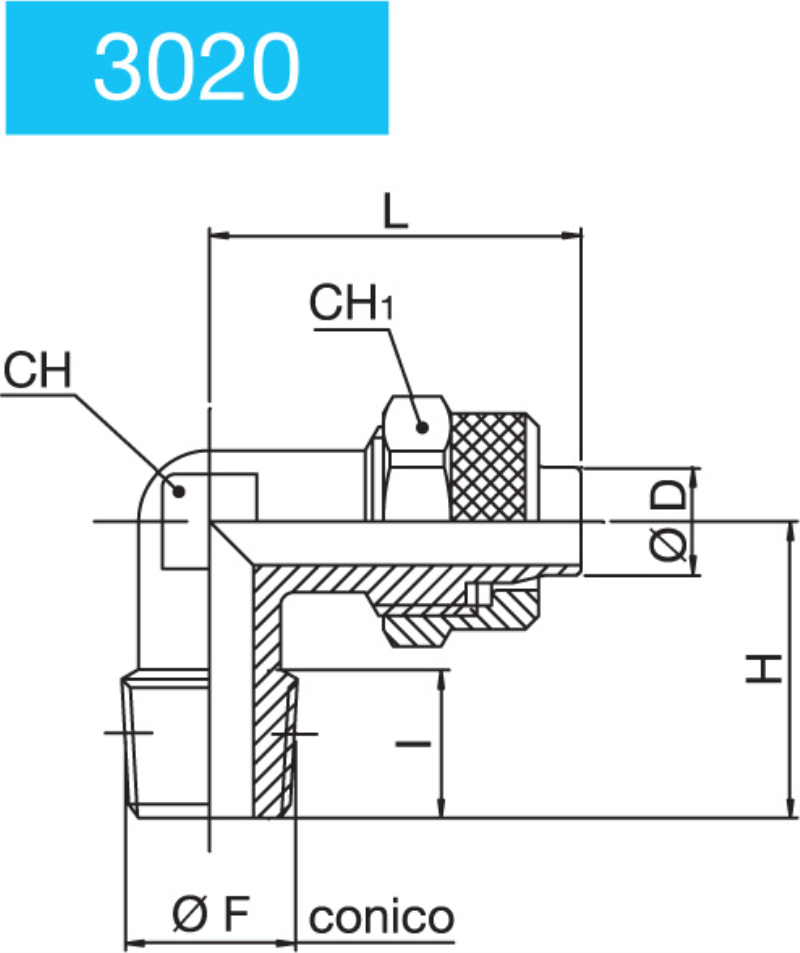

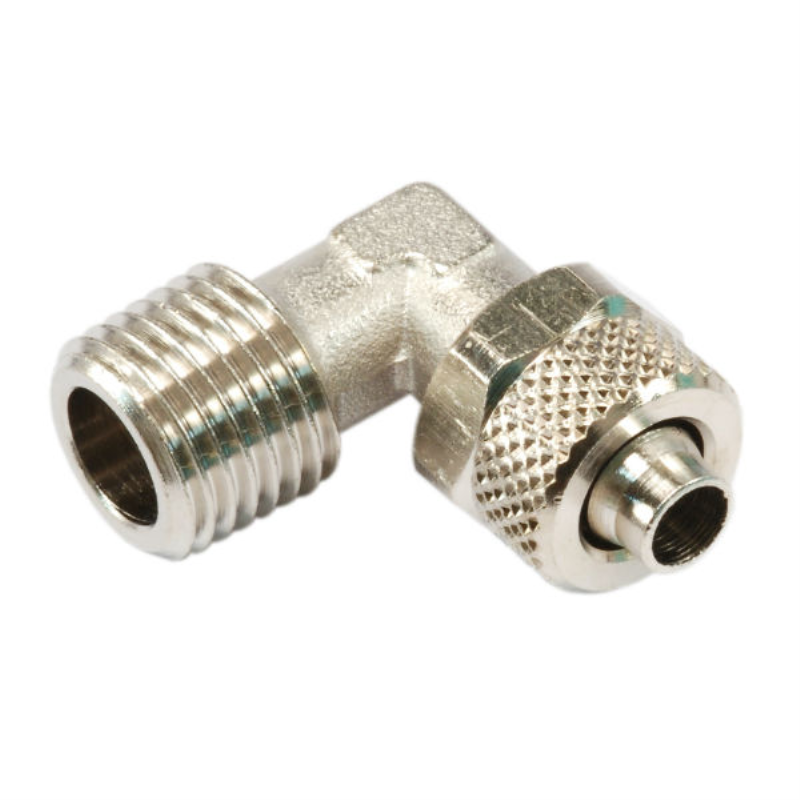

ELBOW MALE CONICAL
Cod: 3020
| Article | D | F | I | H | L | CH | CH1 |
|---|---|---|---|---|---|---|---|
| 30201110 | 4/2.7 | 1/8 | 8 | 17 | 19.5 | 8 | 8 |
| 30201140 | 5/3 | 1/8 | 8 | 17 | 21.5 | 8 | 8 |
| 30201220 | 6/4 | 1/8 | 8 | 17 | 22.5 | 8 | 12 |
| 30201230 | 6/4 | 1/4 | 11 | 20 | 22.5 | 10 | 12 |
| 30201240 | 6/4 | 3/8 | 11.5 | 22.5 | 23.5 | 11 | 12 |
| 30201280 | 8/6 | 1/8 | 8 | 17 | 22.5 | 10 | 14 |
| 30201290 | 8/6 | 1/4 | 11 | 20 | 22.5 | 10 | 14 |
| 30201300 | 8/6 | 3/8 | 11.5 | 22.5 | 24 | 11 | 14 |
| 30201310 | 8/6 | 1/2 | 14 | 28 | 26.5 | 17 | 14 |
| 30201340 | 10/8 | 1/8 | 8 | 18.5 | 25.5 | 11 | 16 |
| 30201350 | 10/8 | 1/4 | 11 | 21.5 | 25.5 | 11 | 16 |
| 30201360 | 10/8 | 3/8 | 11.5 | 22.5 | 25.5 | 11 | 16 |
| 30201370 | 10/8 | 1/2 | 14 | 28 | 28 | 17 | 16 |
| 30201390 | 12/10 | 1/4 | 11 | 24 | 30 | 14 | 18 |
| 30201400 | 12/10 | 3/8 | 11.5 | 24.5 | 30 | 14 | 18 |
| 30201410 | 12/10 | 1/2 | 14 | 28 | 30.5 | 17 | 18 |
| 30201440 | 15/12.5 | 1/2 | 14 | 28 | 34 | 17 | 22 |
