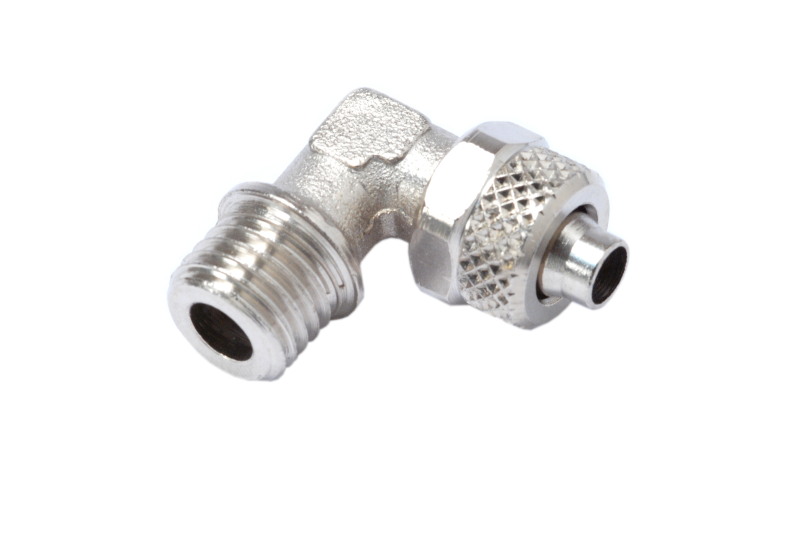

ELBOW MALE METRIC
Cod: 3021

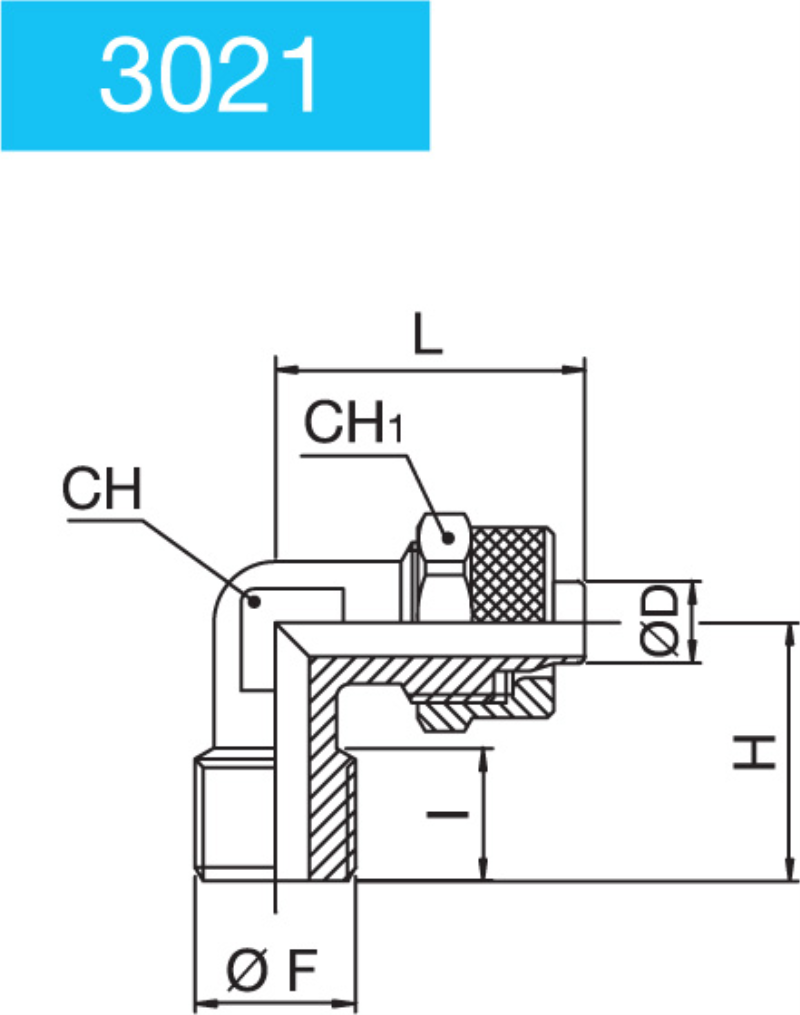

| Article | D | F | I | H | L | CH | CH1 |
|---|---|---|---|---|---|---|---|
| 30211070 | 4/2.7 | M5 | 4 | 15 | 19.5 | 8 | 8 |
| 30211080 | 4/2.7 | M6 | 4 | 15 | 19.5 | 8 | 8 |
| 30211120 | 5/3 | M5 | 4 | 15 | 21.5 | 8 | 8 |
| 30211170 | 6/4 | M5 | 4 | 15 | 22.5 | 8 | 9 |
| 30211200 | 6/4 | M12X1.25 | 9 | 20.5 | 22.5 | 10 | 12 |
| 30211210 | 6/4 | M12X1.5 | 9 | 20.5 | 22.5 | 10 | 12 |
| 30211320 | 8/6 | M12X1.25 | 9 | 20.5 | 22.5 | 10 | 14 |
| 30211330 | 8/6 | M12X1.5 | 9 | 20.5 | 22.5 | 10 | 14 |
