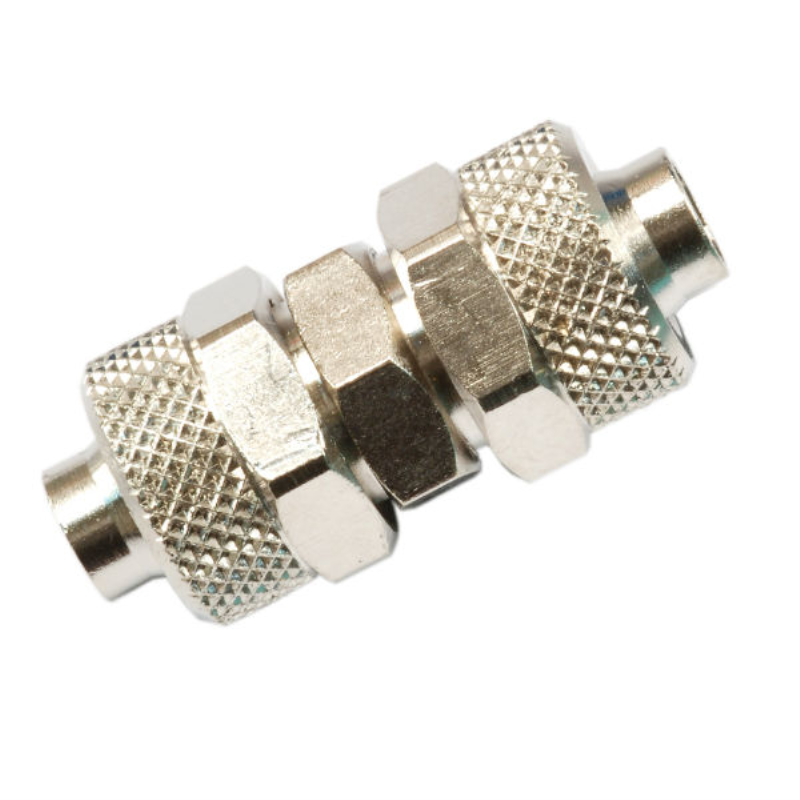

STRAIGHT CONNECTOR
Cod: 3100

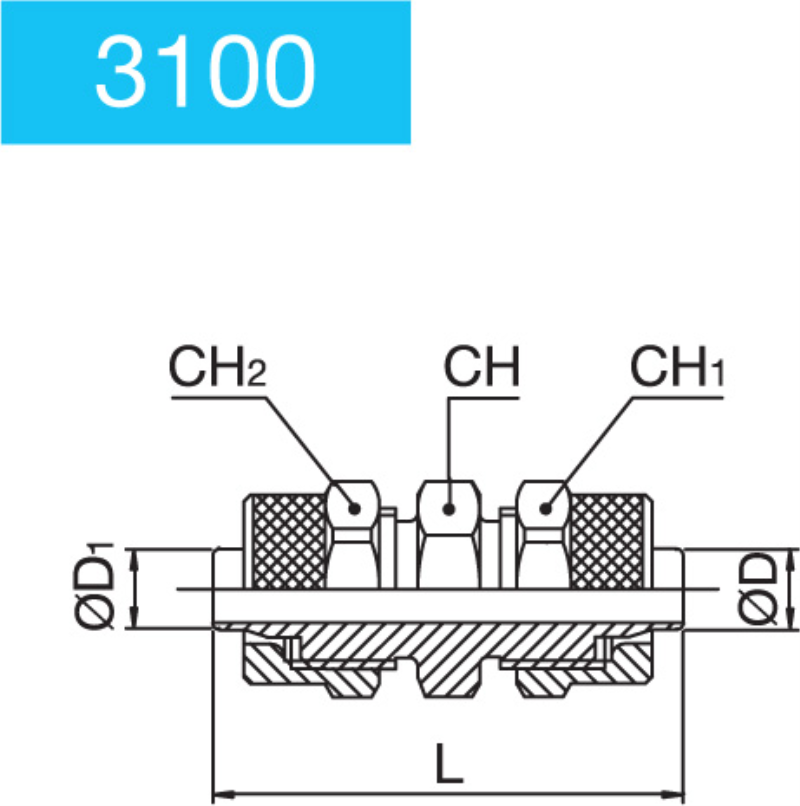

| Article | D | D1 | L | CH | CH1 | CH2 |
|---|---|---|---|---|---|---|
| 31006700 | 4/2.7 | 4/2.7 | 26 | 8 | 8 | 8 |
| 31007000 | 5/3 | 5/3 | 28.5 | 8 | 8 | 8 |
| 31007600 | 6/4 | 6/4 | 34.5 | 12 | 12 | 12 |
| 31008400 | 8/6 | 8/6 | 35 | 14 | 14 | 14 |
| 31008700 | 8/6 | 6/4 | 35.5 | 14 | 14 | 12 |
| 31009100 | 10/8 | 10/8 | 38 | 14 | 16 | 16 |
| 31009800 | 12/10 | 12/10 | 41 | 17 | 18 | 18 |
| 31009900 | 15/12.5 | 15/12.5 | 45.5 | 22 | 22 | 22 |
