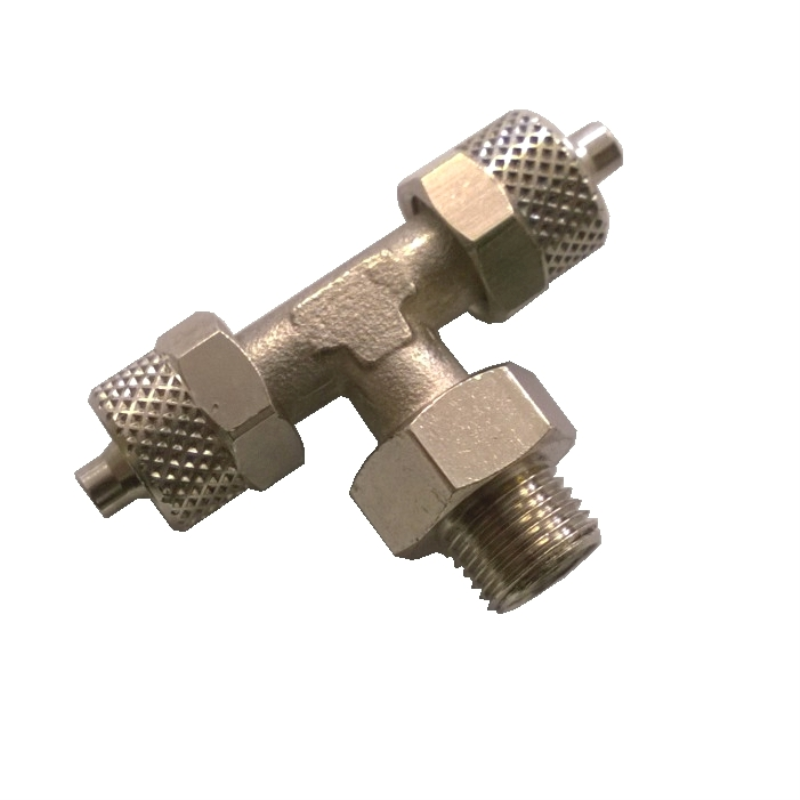

SWIVEL TEE CENTRAL MALE CYLINDRICAL
Cod: 3141-1

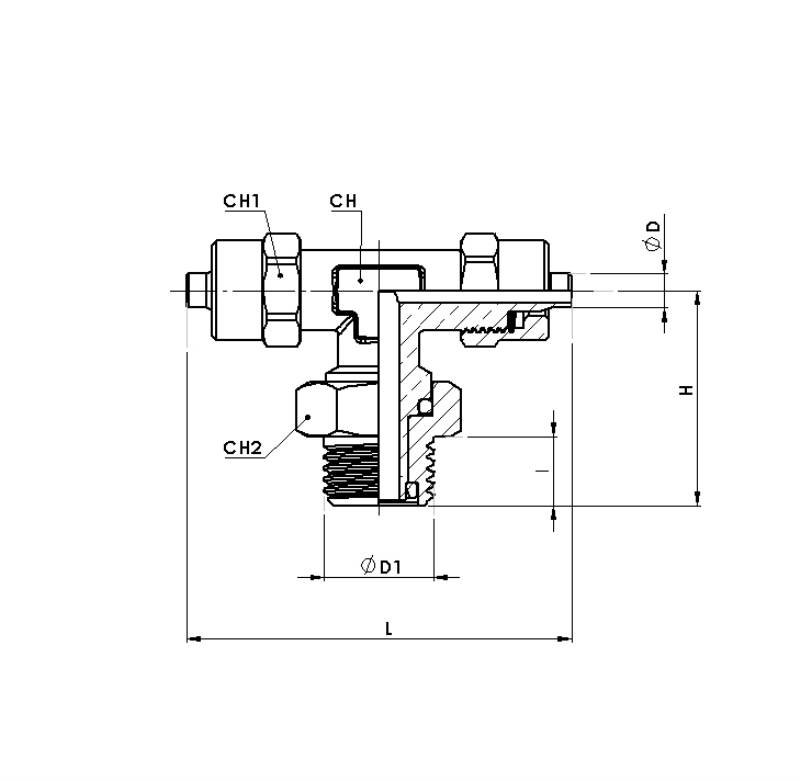

| Article | D | D1 | I | H | L | CH | CH1 | CH2 |
|---|---|---|---|---|---|---|---|---|
| 31411111 | 4/2.7 | 1/8 | 6 | 23 | 40.5 | 8 | 8 | 14 |
| 31411221 | 6/4 | 1/8 | 6 | 23 | 45 | 8 | 12 | 14 |
| 31411231 | 6/4 | 1/4 | 8 | 26 | 45.5 | 10 | 12 | 17 |
| 31411281 | 8/6 | 1/8 | 6 | 23 | 45.5 | 10 | 14 | 14 |
| 31411291 | 8/6 | 1/4 | 8 | 26 | 45.5 | 10 | 14 | 17 |
| 31411351 | 10/8 | 1/4 | 8 | 27 | 51 | 11 | 16 | 17 |
| Temperature min./max. | -20°C | +100°C |
