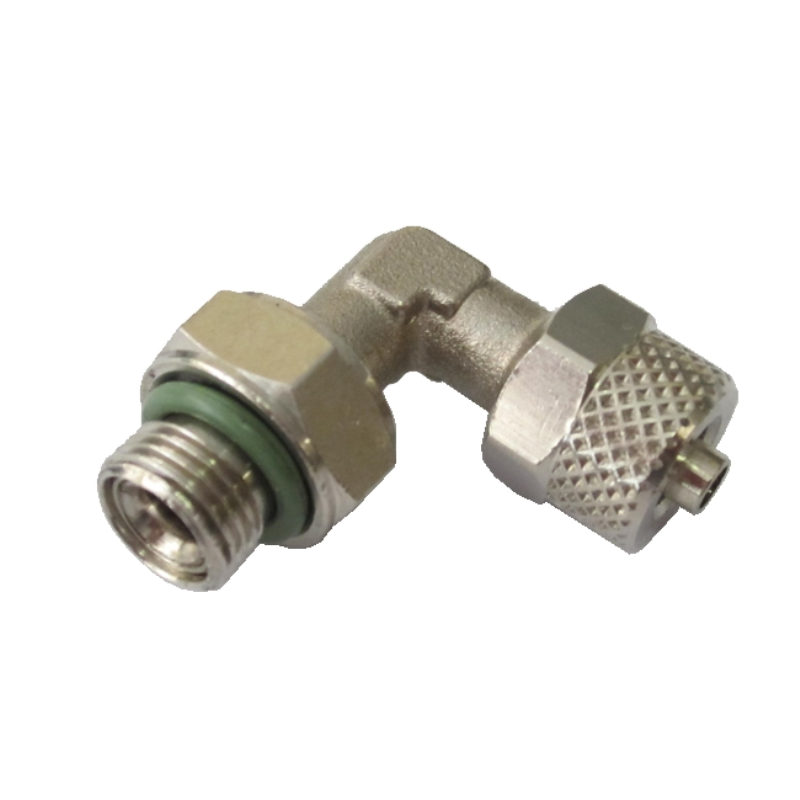

SWIVEL ELBOW MALE CYLINDRICAL WITH O-RING VITON
Cod: 3026V

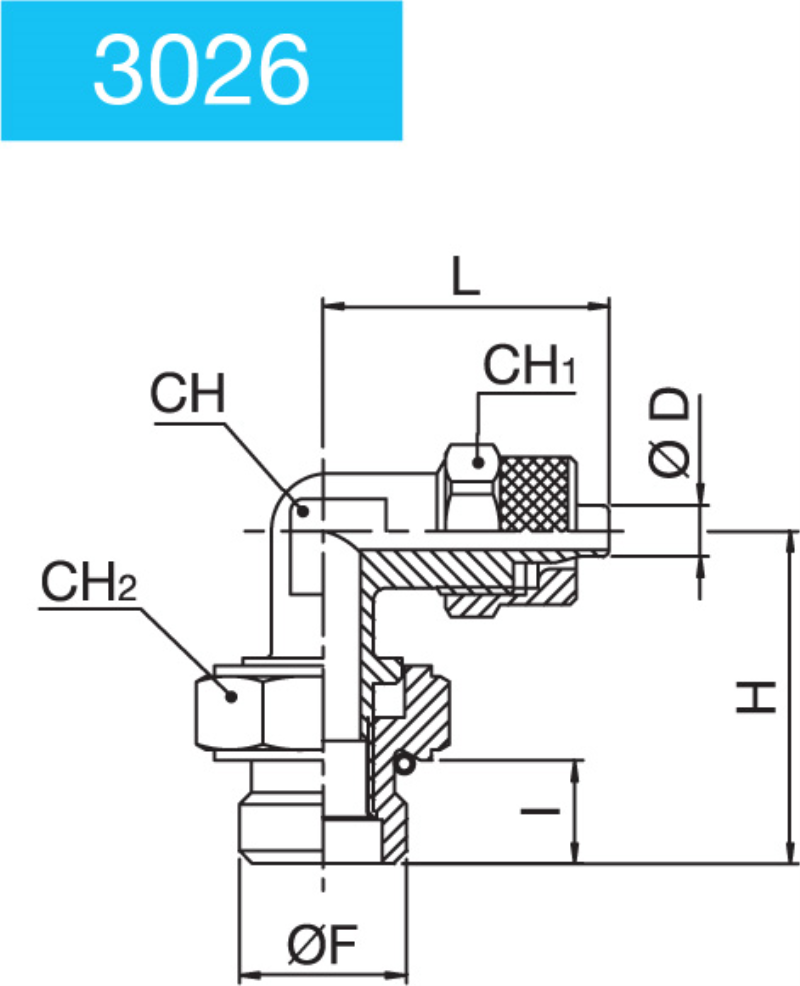

| Article | D | F | I | H | L | CH | CH1 | CH2 |
|---|---|---|---|---|---|---|---|---|
| 30261110V | 4/2.7 | 1/8 | 6.5 | 23 | 20.5 | 8 | 12 | 14 |
| 30261220V | 6/4 | 1/8 | 6.5 | 23 | 22.5 | 8 | 12 | 14 |
| 30261230V | 6/4 | 1/4 | 8 | 25 | 23 | 10 | 12 | 17 |
| 30261280V | 8/6 | 1/8 | 6.5 | 22 | 23 | 10 | 14 | 14 |
| 30261290V | 8/6 | 1/4 | 8 | 25 | 23 | 10 | 14 | 17 |
| 30261350V | 10/8 | 1/4 | 8 | 26 | 25.5 | 11 | 16 | 17 |
| Temperature min./max. | -15°C | +200°C |
