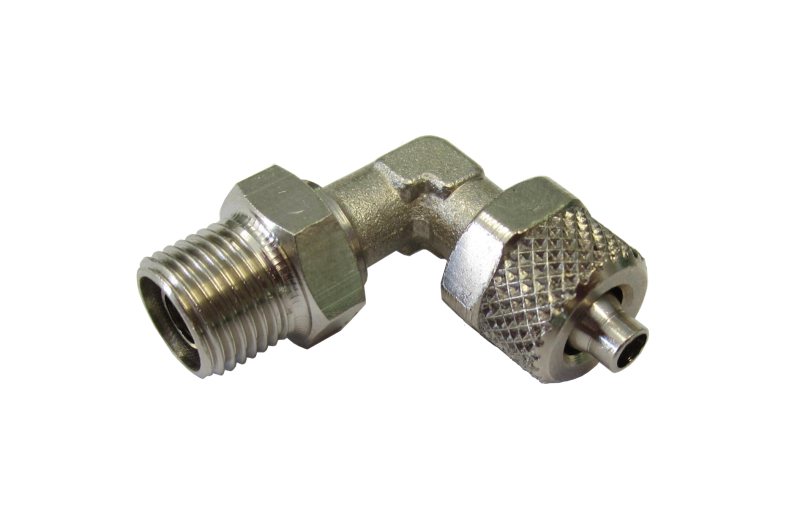

ELBOW SWIVEL central MALE CONICAL
Cod: 3027

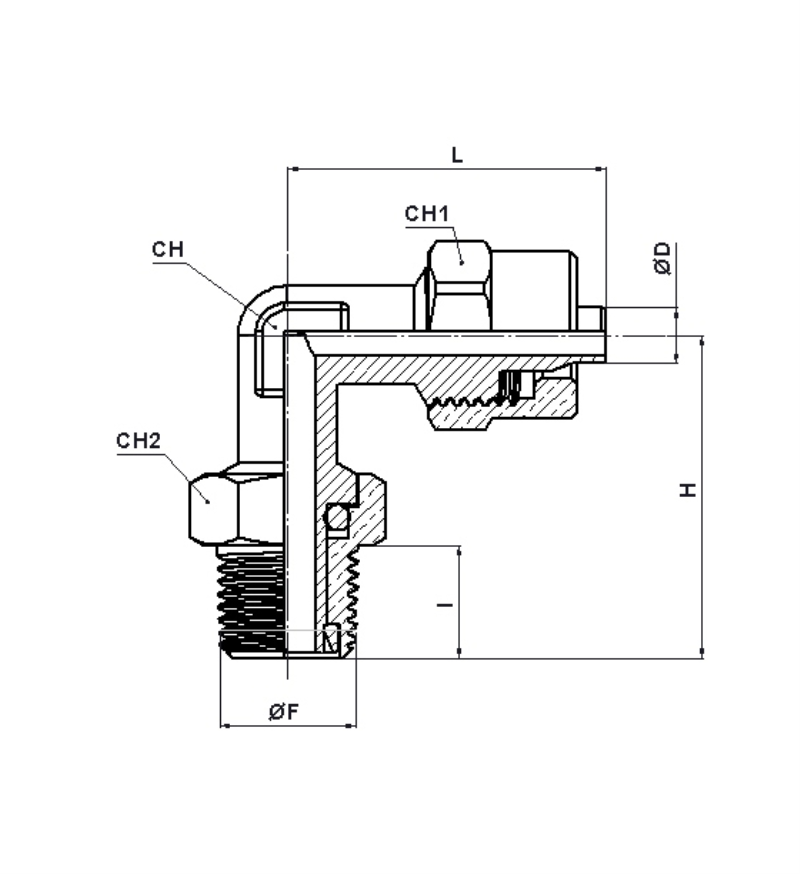

| Article | D | F | I | H | L | CH | CH1 | CH2 |
|---|---|---|---|---|---|---|---|---|
| 30271110 | 4/2.7 | 1/8 | 8 | 23 | 20.5 | 8 | 8 | 12 |
| 30271220 | 6/4 | 1/8 | 8 | 23 | 22.5 | 8 | 12 | 12 |
| 30271230 | 6/4 | 1/4 | 11 | 26 | 23 | 10 | 12 | 16 |
| 30271280 | 8/6 | 1/8 | 8 | 22 | 23 | 10 | 14 | 12 |
| 30271290 | 8/6 | 1/4 | 11 | 26 | 23 | 10 | 14 | 16 |
| 30271350 | 10/8 | 1/4 | 11 | 27 | 25.5 | 11 | 16 | 16 |
| Temperature min./max. | -20°C | +100°C |
