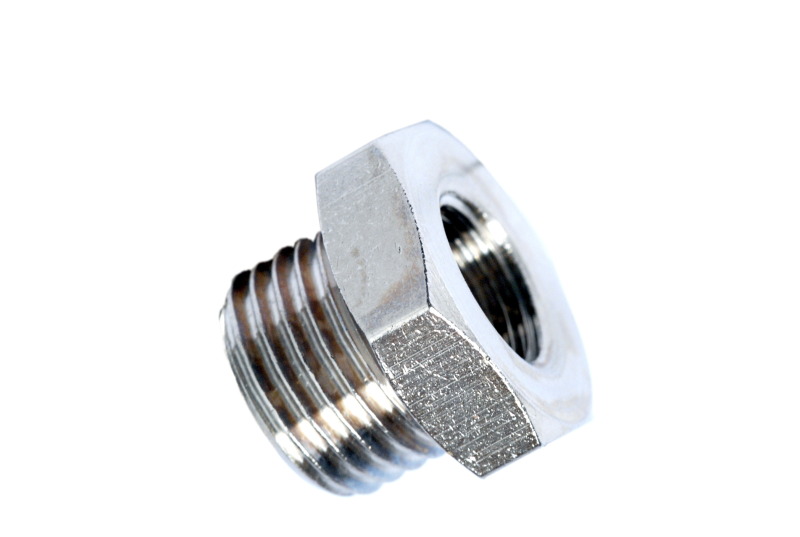

M.F.CYLINDRICAL REDUCER ADAPTOR -3705-
Cod: 3705

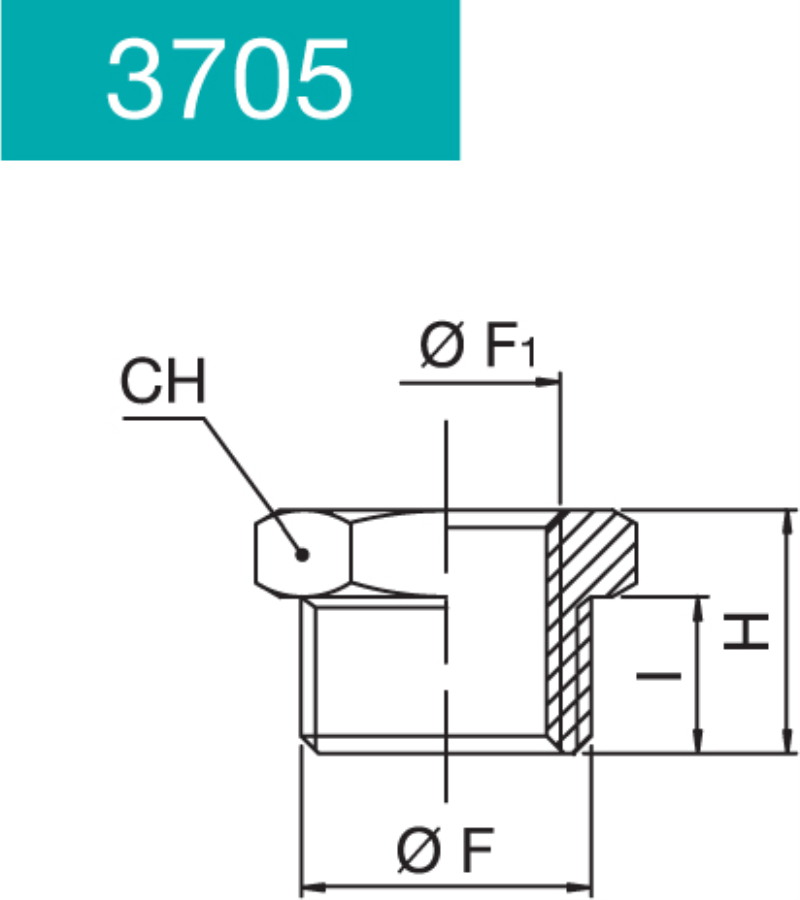

| Article | F | F1 | I | H | CH |
|---|---|---|---|---|---|
| 37050400 | 1/8 | M5 | 6 | 10.5 | 14 |
| 37051800 | 1/4 | 1/8 | 8 | 13 | 17 |
| 37052700 | 3/8 | 1/8 | 9 | 14 | 19 |
| 37052800 | 3/8 | 1/4 | 9 | 14 | 19 |
| 37053600 | 1/2 | 1/8 | 10 | 15.5 | 24 |
| 37053700 | 1/2 | 1/4 | 10 | 15.5 | 24 |
| 37053800 | 1/2 | 3/8 | 10 | 15.5 | 24 |
| 37054700 | 3/4 | 3/8 | 11 | 17.5 | 30 |
| 37054600 | 3/4 | 1/4 | 11 | 17,5 | 30 |
| 37054800 | 3/4 | 1/2 | 11 | 17.5 | 30 |
| 37055070 | 1" | 1/8 | 13 | 19 | 38 |
| 37055100 | 1" | 1/2 | 11.5 | 18.5 | 36 |
| 37055400 | 1" | 3/4 | 11.5 | 18.5 | 36 |
