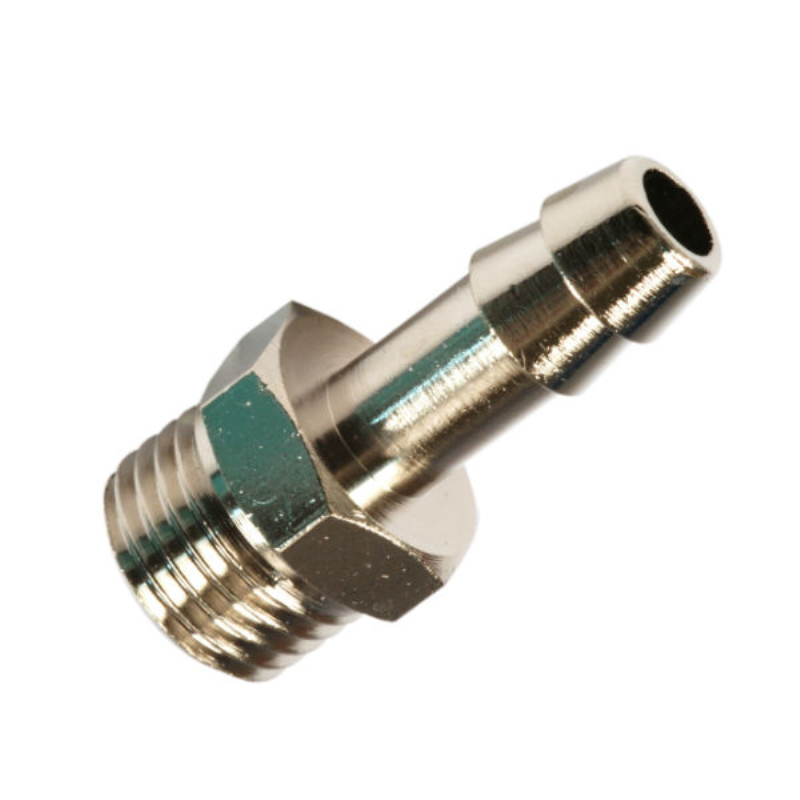

HOSE CONNECTOR MALE CYLINDRICAL

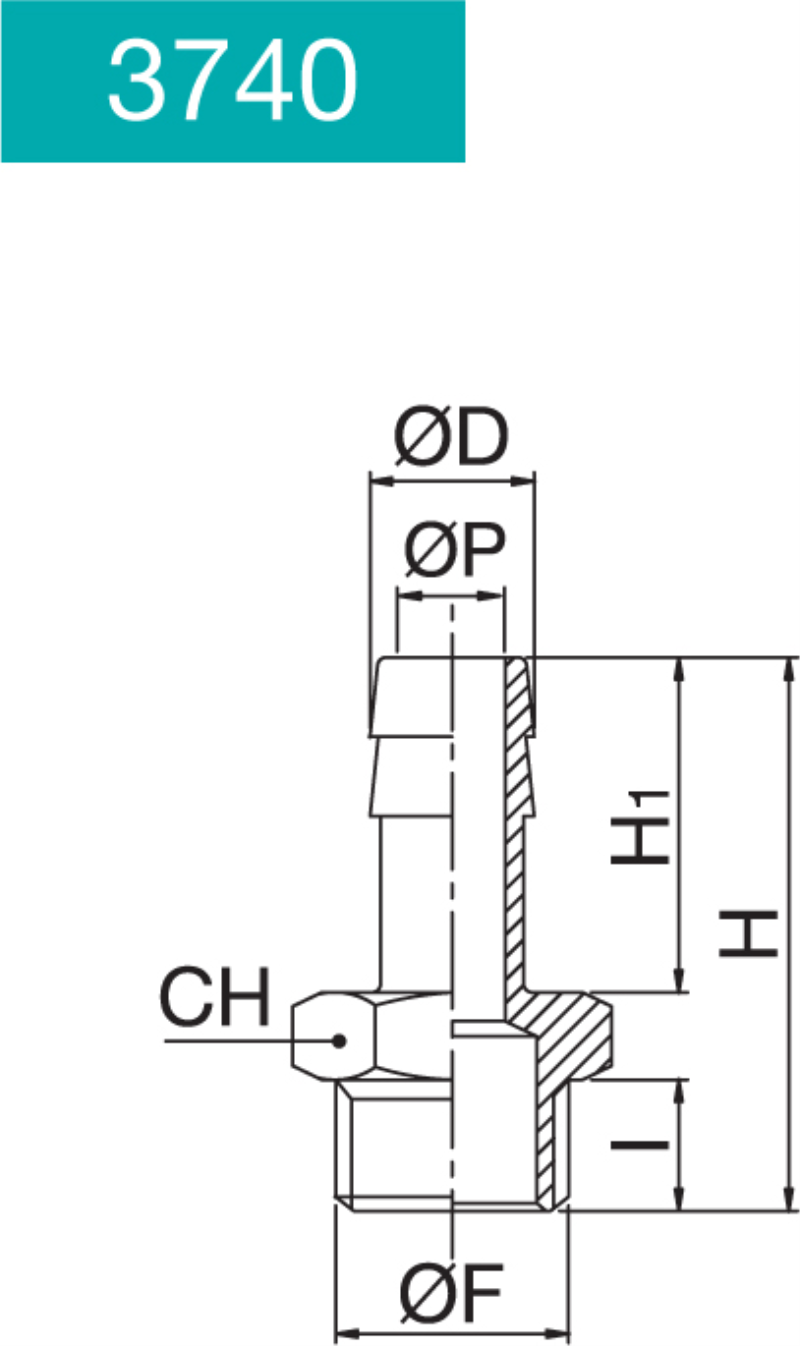

Cod: 3740
| Article | D | F | P | I | H | H1 | CH |
|---|---|---|---|---|---|---|---|
| 37401070 | 4.5 | M5 | 2 | 4 | 22.5 | 15 | 8 |
| 37401570 | 6 | 1/8 | 3 | 6 | 29.5 | 19 | 12 |
| 37401580 | 6 | 1/4 | 3 | 8 | 32 | 19 | 14 |
| 37401610 | 7 | 1/8 | 4 | 6 | 29.5 | 19 | 12 |
| 37401620 | 7 | 1/4 | 4 | 8 | 32 | 19 | 14 |
| 37401660 | 8 | 1/8 | 5 | 6 | 29.5 | 19 | 12 |
| 37401670 | 8 | 1/4 | 5 | 8 | 32 | 19 | 14 |
| 37401680 | 8 | 3/8 | 5 | 9 | 33 | 19 | 19 |
| 37401710 | 9 | 1/8 | 6 | 6 | 29.5 | 19 | 12 |
| 37401720 | 9 | 1/4 | 6 | 8 | 32 | 19 | 14 |
| 37401730 | 9 | 3/8 | 6 | 9 | 33 | 19 | 19 |
| 37401750 | 10 | 1/8 | 7 | 6 | 30.5 | 20 | 12 |
| 37401760 | 10 | 1/4 | 7 | 8 | 33 | 20 | 14 |
| 37401770 | 10 | 3/8 | 7 | 9 | 34 | 20 | 19 |
| 37401810 | 12 | 1/4 | 9 | 8 | 33 | 20 | 14 |
| 37401820 | 12 | 3/8 | 9 | 9 | 34 | 20 | 19 |
| 37401830 | 12 | 1/2 | 9 | 10 | 35.5 | 20 | 22 |
| 37401870 | 14 | 3/8 | 10.5 | 9 | 36 | 22 | 19 |
| 37401880 | 14 | 1/2 | 10.5 | 10 | 37.5 | 22 | 22 |
| 37402000 | 17 | 3/8 | 13 | 9 | 38 | 24 | 19 |
| 37402010 | 17 | 1/2 | 13 | 10 | 39.5 | 24 | 22 |
| 37402070 | 18 | 3/4 | 15.5 | 11 | 41.5 | 24 | 30 |
| 37402110 | 20 | 1/2 | 14 | 10 | 39.5 | 24 | 22 |
| 37402120 | 20 | 3/4 | 16 | 11 | 41.5 | 24 | 30 |
