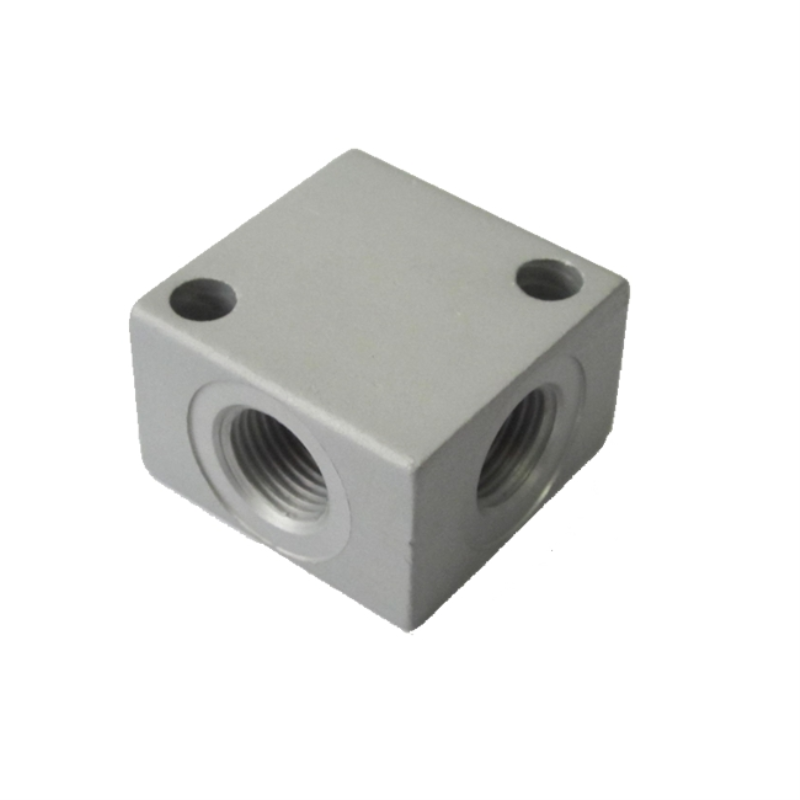

4 WAY DISTRIBUTION FRAME ANODIZED
Cod: 3670-1

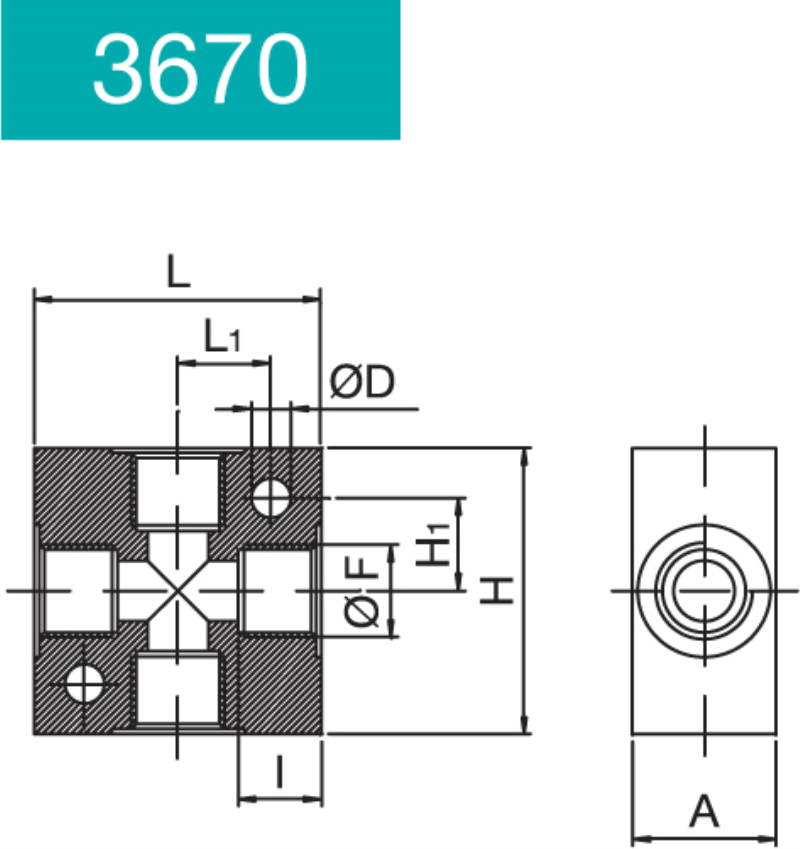

| Article | F | I | H | H1 | L | L1 | D | A |
|---|---|---|---|---|---|---|---|---|
| 36700801 | 1/8 | 8 | 25 | 8.5 | 25 | 8.5 | 4.5 | 15 |
| 36701701 | 1/4 | 11 | 40 | 13 | 40 | 13 | 5.5 | 20 |
| 36702601 | 3/8 | 11.5 | 50 | 17 | 50 | 17 | 5.5 | 25 |
| 36703501 | 1/2 | 14 | 50 | 17 | 50 | 17 | 5.5 | 30 |
