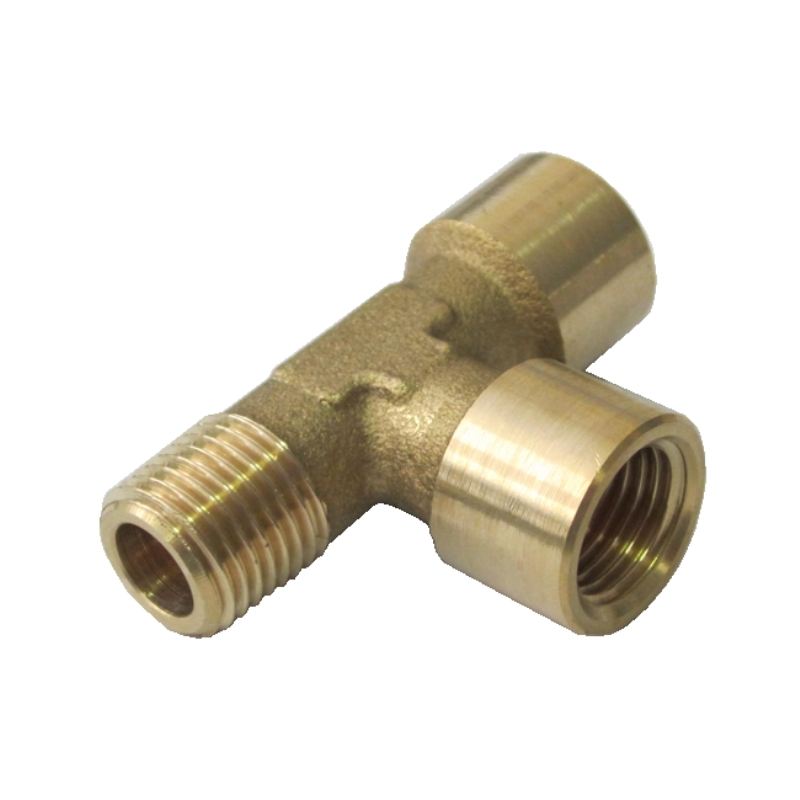

TEE M.F.F. NOT NICKEL PLATED
Cod: D3570

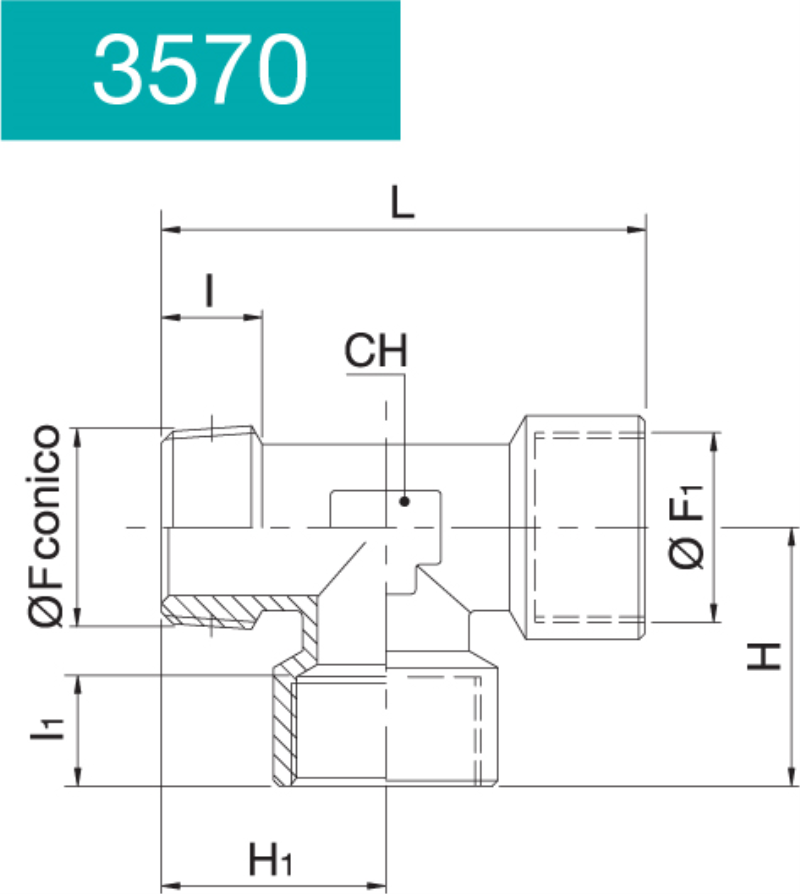

| Article | F | F1 | I | I1 | H1 | H | L | CH |
|---|---|---|---|---|---|---|---|---|
| D35700300 | M5 | M5 | 4 | 5 | 12 | 11 | 22.5 | 9 |
| D35700800 | 1/8 | 1/8 | 8 | 8 | 18.5 | 21 | 39.5 | 10 |
| D35701700 | 1/4 | 1/4 | 11 | 11 | 23.5 | 25.5 | 49 | 13 |
| D35702600 | 3/8 | 3/8 | 11.5 | 11.5 | 26 | 28 | 54 | 17 |
| D35703500 | 1/2 | 1/2 | 15 | 15 | 31 | 33.5 | 64.5 | 21 |
| D35704900 | 3/4 | 3/4 | 16 | 16.5 | 33 | 36.5 | 69.5 | 25 |
| D35705300 | 1" | 1" | 17.5 | 19 | 39 | 45 | 84 | 30 |
