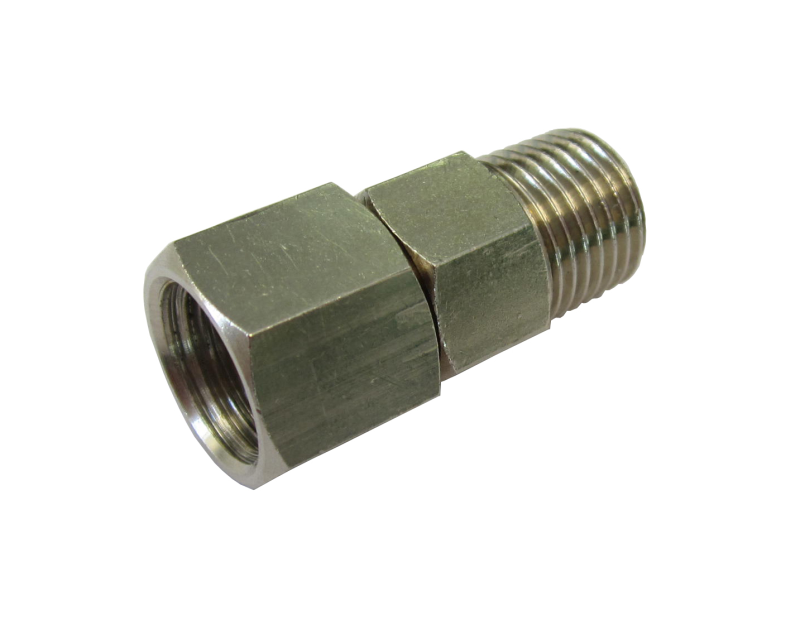

SWIVEL NIPPLE CONICAL
Cod: 3693

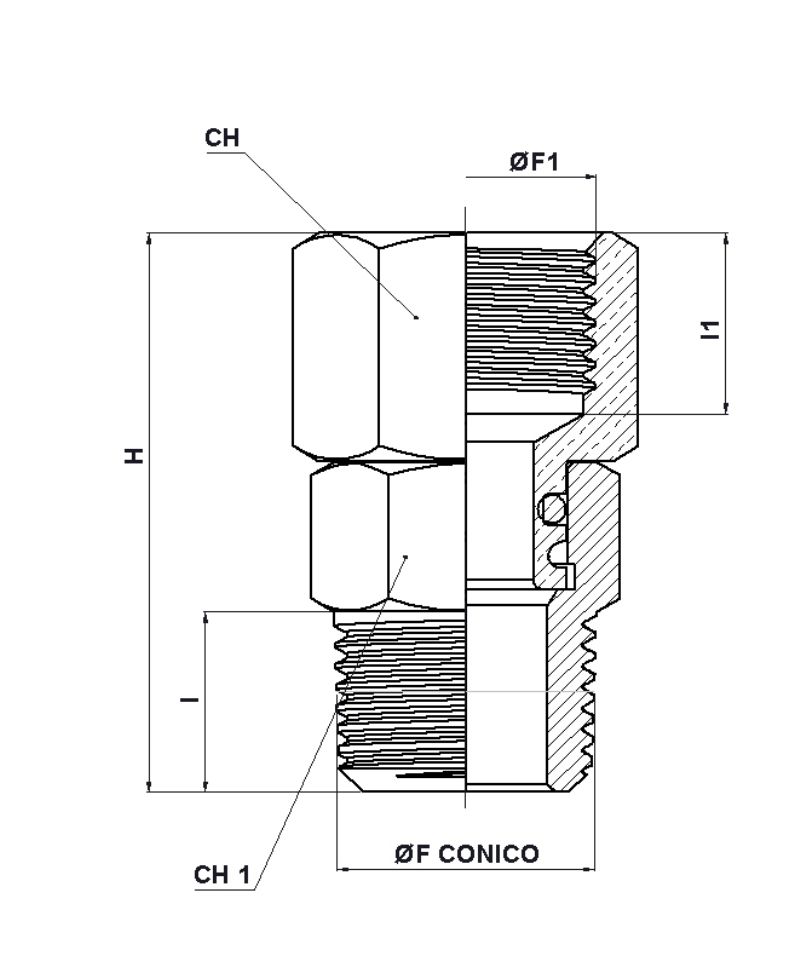

| Article | F | F1 | I | I1 | H | CH | CH1 |
|---|---|---|---|---|---|---|---|
| 36930800 | 1/8 | 1/8 | 8 | 8 | 28 | 12 | 13 |
| 36931700 | 1/4 | 1/4 | 11 | 11 | 34 | 14 | 16 |
| 36932600 | 3/8 | 3/8 | 11.5 | 11.5 | 35.5 | 17 | 19 |
| Temperature min./max. | +20°C | +100°C |
