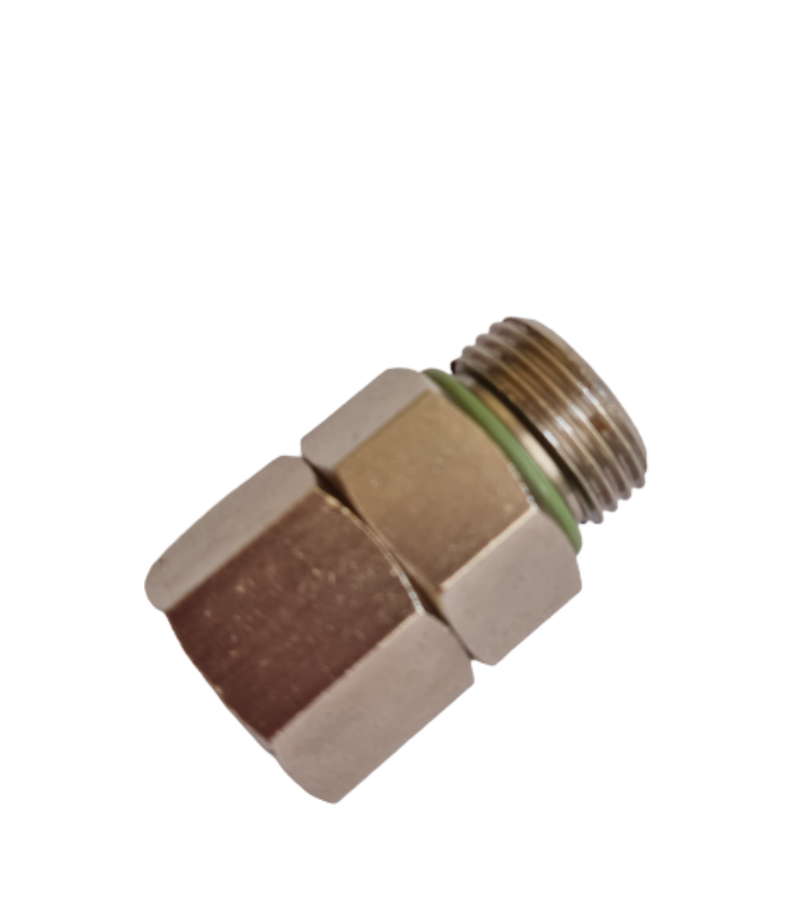

SWIVEL NIPPLE CYLINDRICAL WITH O-RING VITON
Cod: 3694V

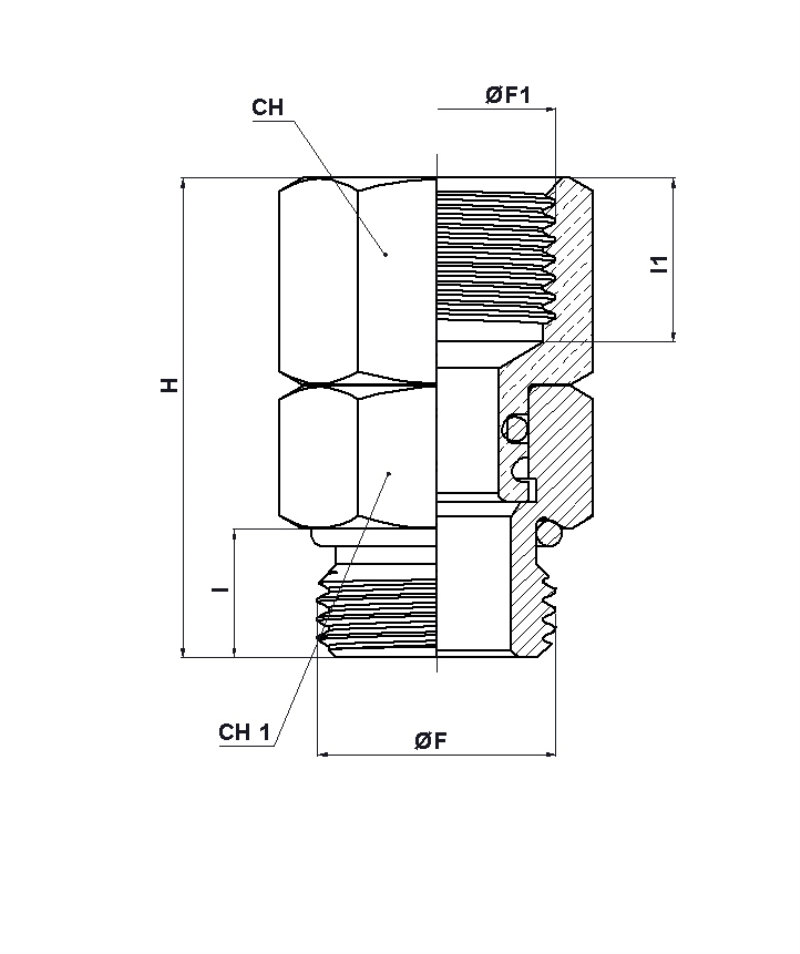

| Article | F | F1 | I | I1 | H | CH | CH1 |
|---|---|---|---|---|---|---|---|
| 36940800V | 1/8 | 1/8 | 6.5 | 8 | 27 | 13 | 13 |
| 36941700V | 1/4 | 1/4 | 8 | 11 | 32 | 16 | 16 |
| 36942600V | 3/8 | 3/8 | 9 | 11.5 | 33.5 | 19 | 19 |
| Temperature min./max. | -15°C | +200°C |
