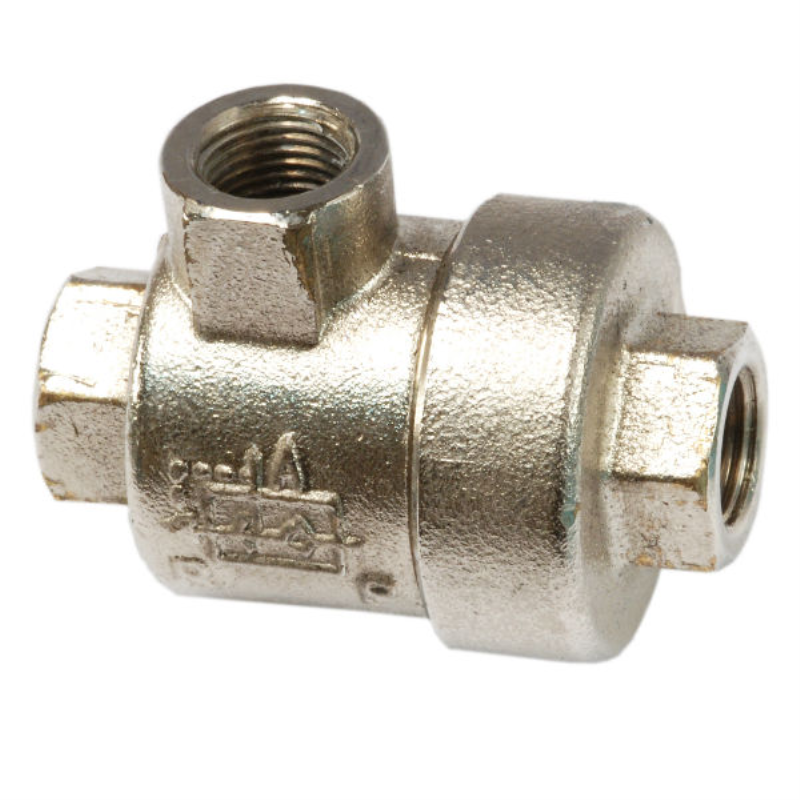

QUICK EXHAUST VALVE -3800-
Cod: 3800

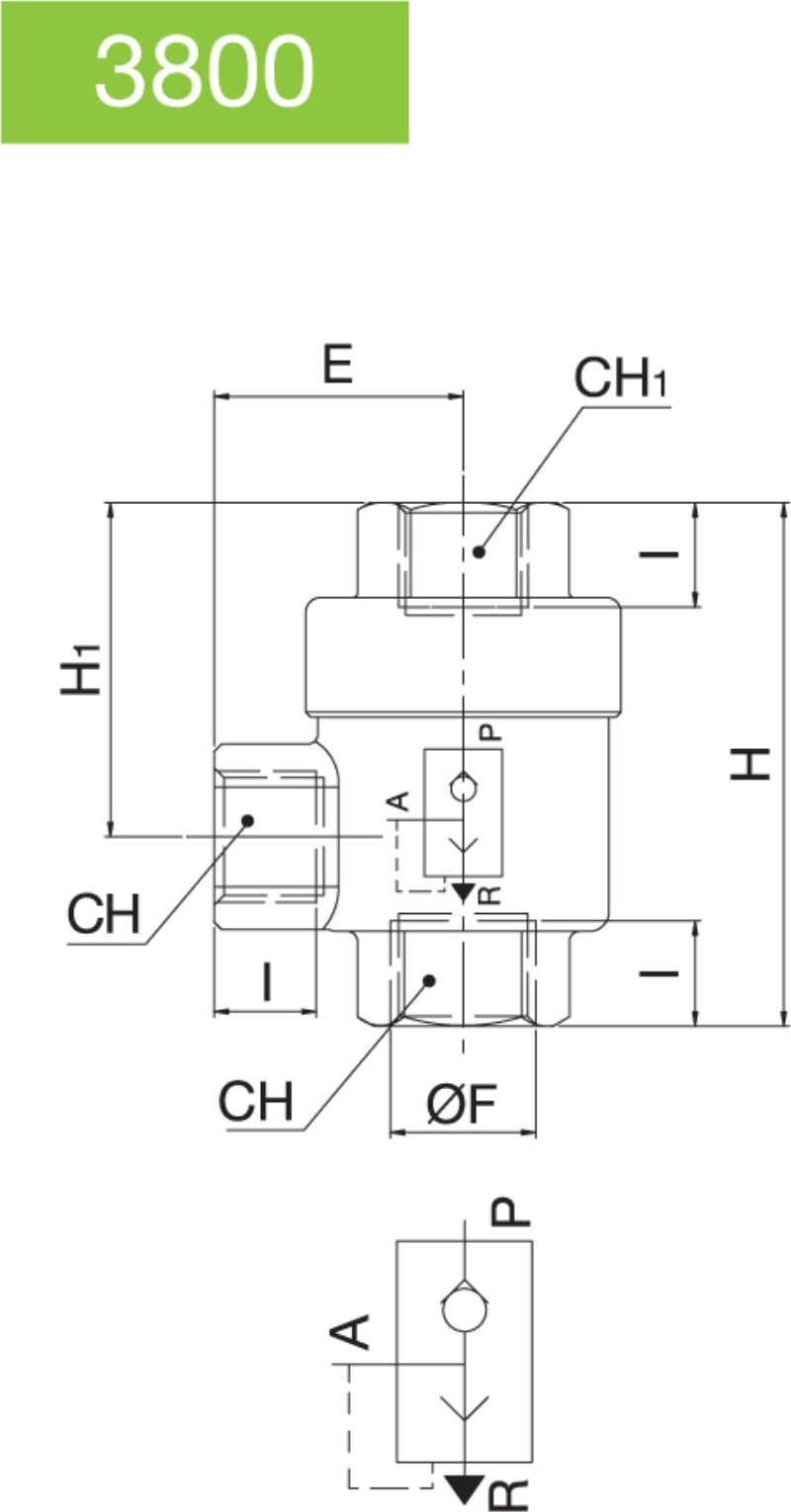

| Article | F | I | H | H1 | CH | CH1 | E | P->A | A->R | SEAL |
|---|---|---|---|---|---|---|---|---|---|---|
| 38000300 | M5 | 4.5 | 25 | 16.5 | 10 | 10 | 10.5 | 220 | 300 | NBR |
| 38000800 | 1/8 | 8 | 42.5 | 27 | 14 | 14 | 19.5 | 650 | 900 | PU |
| 38001700 | 1/4 | 11 | 53 | 34.5 | 19 | 19 | 25 | 1100 | 1550 | PU |
| 38002600 | 3/8 | 12 | 55 | 35.5 | 21 | 21 | 26.5 | 2300 | 4900 | PU |
| 38003500 | 1/2 | 14 | 71.5 | 44.5 | 26 | 26 | 35 | 3600 | 4400 | PU |
| 38004400 | 3/4 | 18 | 88.5 | 54.5 | 32 | 32 | 40 | 3200 | 8750 | PU |
| 38005300 | 1" | 19 | 94 | 57 | 38 | 38 | 42 | .2900 | 10750 | PU |
| Qn VALUE | P<->A Nl/min. The determination of the flow values at an average of 6 bar | |||||||||
| Temperature min./max. | -20°C | +80°C |
