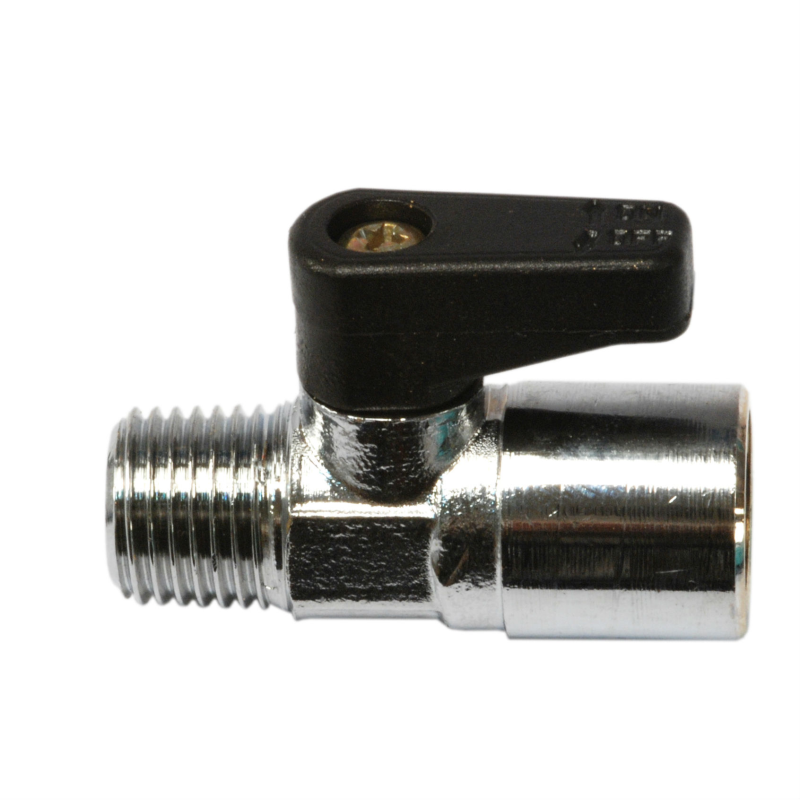

MINI BALL VALVE MALE CONICAL / FEMALE
Cod: 4010

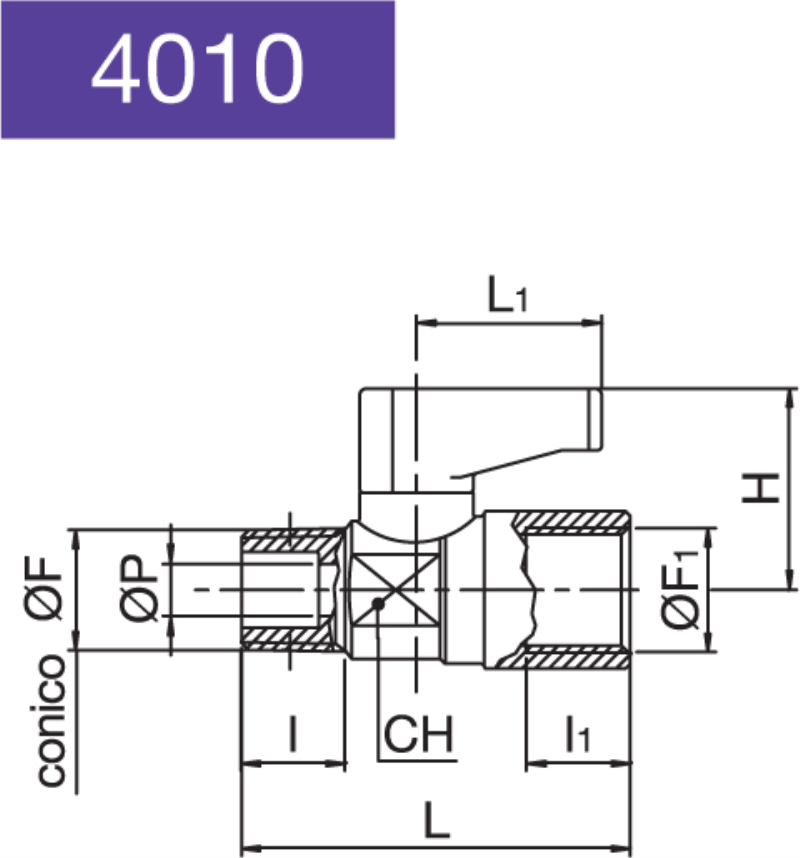

| Article | F | F1 | P | I | I1 | L | L1 | H | CH |
|---|---|---|---|---|---|---|---|---|---|
| 40100900 | 1/8 | 1/8 | 5.5 | 8 | 8 | 35.5 | 19.5 | 21.5 | 14 |
| 40101800 | 1/4 | 1/8 | 5.5 | 11 | 8 | 38 | 19.5 | 21.5 | 14 |
| 40101900 | 1/4 | 1/4 | 5.5 | 11 | 11 | 41 | 19.5 | 21.5 | 14 |
| 40102800 | 3/8 | 1/4 | 5.5 | 11.5 | 11 | 41.5 | 19.5 | 21.5 | 14 |
| 40102900 | 3/8 | 3/8 | 8 | 11.5 | 11.5 | 44.5 | 19.5 | 23 | 18 |
| 40103900 | 1/2 | 1/2 | 10 | 15 | 15 | 55.5 | 26.5 | 33 | 22 |
