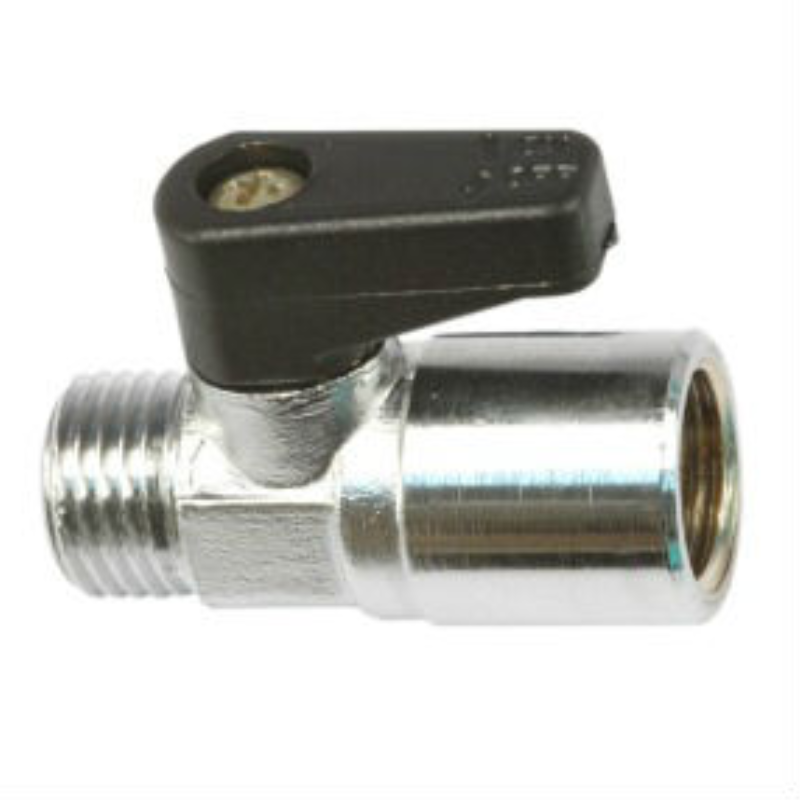

MINI BALL VALVE MALE CYLINDRICAL/ FEMALE
Cod: 4020

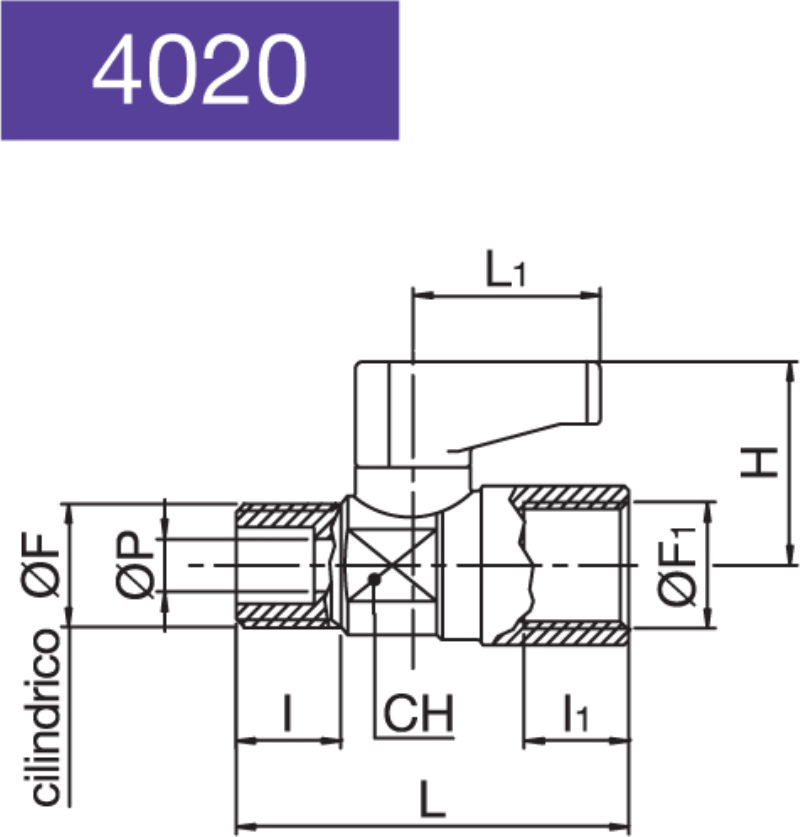

| Article | F | F1 | P | I | I1 | L | L1 | H | CH |
|---|---|---|---|---|---|---|---|---|---|
| 40200900 | 1/8 | 1/8 | 5.5 | 7 | 8 | 34 | 19.5 | 21.5 | 14 |
| 40201800 | 1/4 | 1/8 | 5.5 | 8 | 8 | 35 | 19.5 | 21.5 | 14 |
| 40201900 | 1/4 | 1/4 | 5.5 | 8 | 11 | 37.5 | 19.5 | 21.5 | 14 |
| 40202800 | 3/8 | 1/4 | 5.5 | 8 | 11 | 39 | 19.5 | 21.5 | 14 |
| 40202900 | 3/8 | 3/8 | 8 | 10 | 11.5 | 43 | 19.5 | 23 | 18 |
| 40203900 | 1/2 | 1/2 | 10 | 14 | 15 | 55.5 | 26.5 | 33 | 22 |
