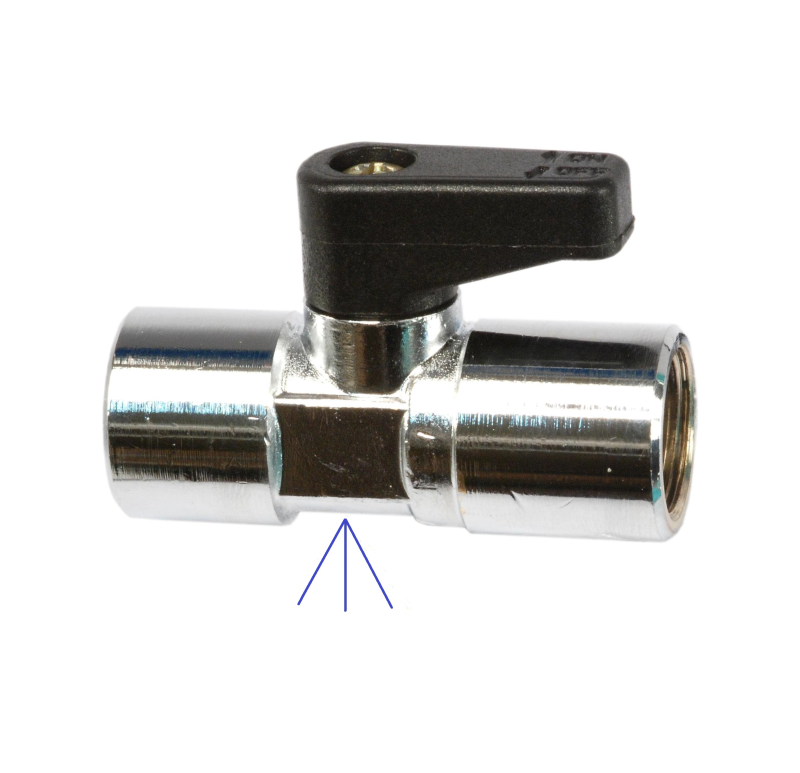

MINI BALL VALVE WITH VENT HOLE
Cod: 4180

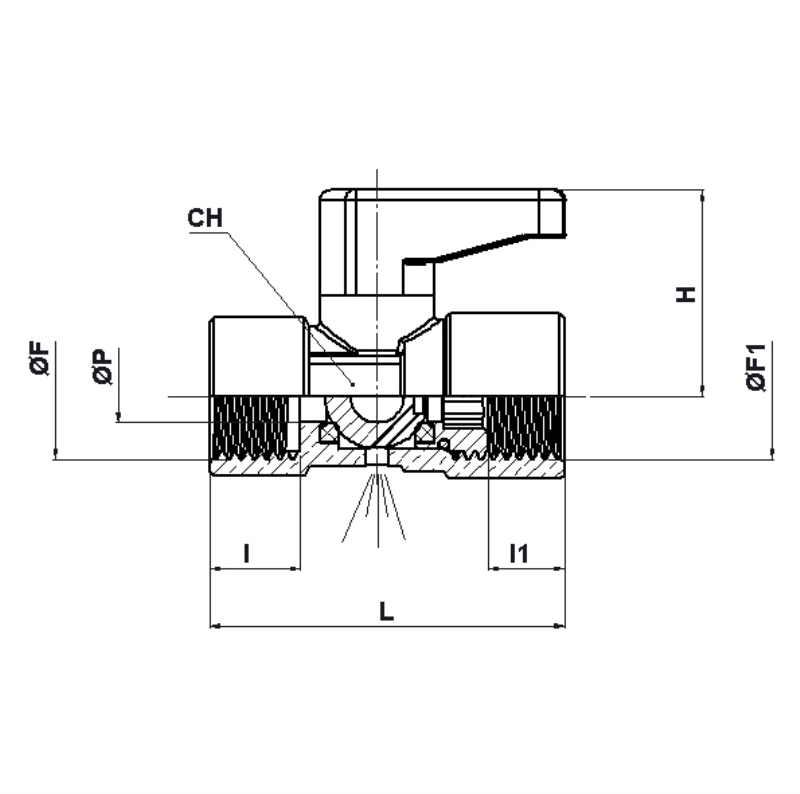

| Article | F | F1 | P | I | I1 | L | L1 | H | CH | S |
|---|---|---|---|---|---|---|---|---|---|---|
| 41800900 | 1/8 | 1/8 | 5.5 | 8 | 8 | 36.5 | 19.5 | 21.5 | 14 | 2.5 |
| 41801900 | 1/4 | 1/4 | 5.5 | 11 | 11 | 43 | 19.5 | 21.5 | 14 | 2.5 |
| 41802900 | 3/8 | 3/8 | 8 | 11.5 | 11.5 | 46 | 19.5 | 23 | 18 | 3 |
