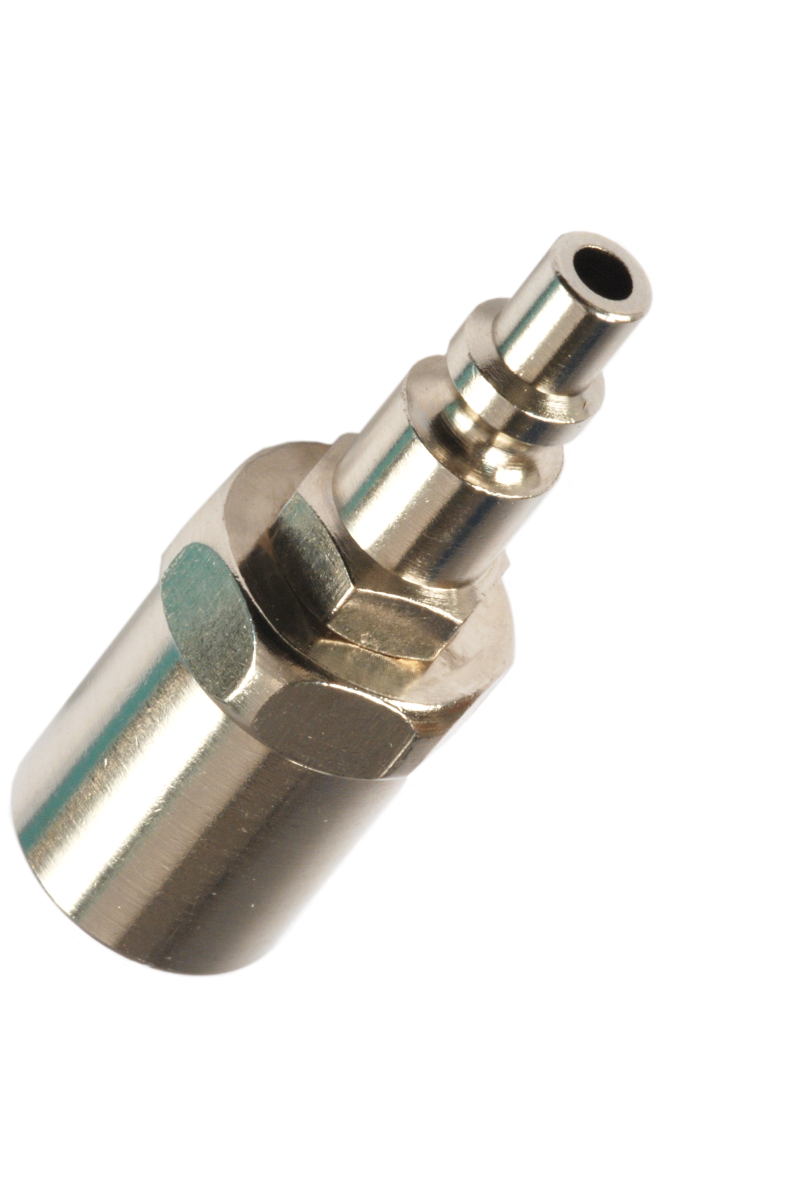

QUICK COUPLING WITH SLEEVE FOR RUBBER HOSE
Cod: 5300

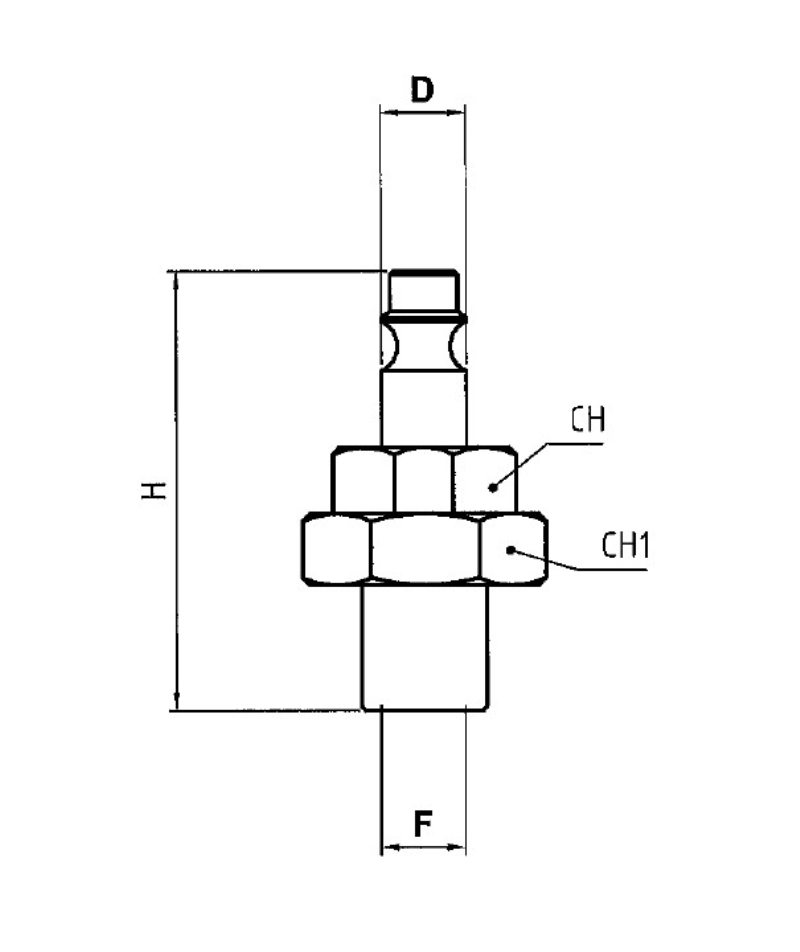

| Article | F | CH | CH1 | H | H1 | H2 | D1 | D2 |
|---|---|---|---|---|---|---|---|---|
| 53008100 | 6X14 | 13 | 17 | 58.6 | 23.7 | 35 | 7.5 | 11.8 |
| 53008600 | 8X12 | 13 | 15 | 58.6 | 23.7 | 35 | 7.5 | 11.8 |
| 53008900 | 8X17 | 13 | 19 | 58.6 | 23.7 | 35 | 7.5 | 11.8 |
| 53009500 | 10X19 | 14 | 22 | 62 | 25 | 37 | 7.5 | 11.8 |
| FOR THE UNIVERSAL TYPE | PUT "U" | AT THE END OF CODE |
