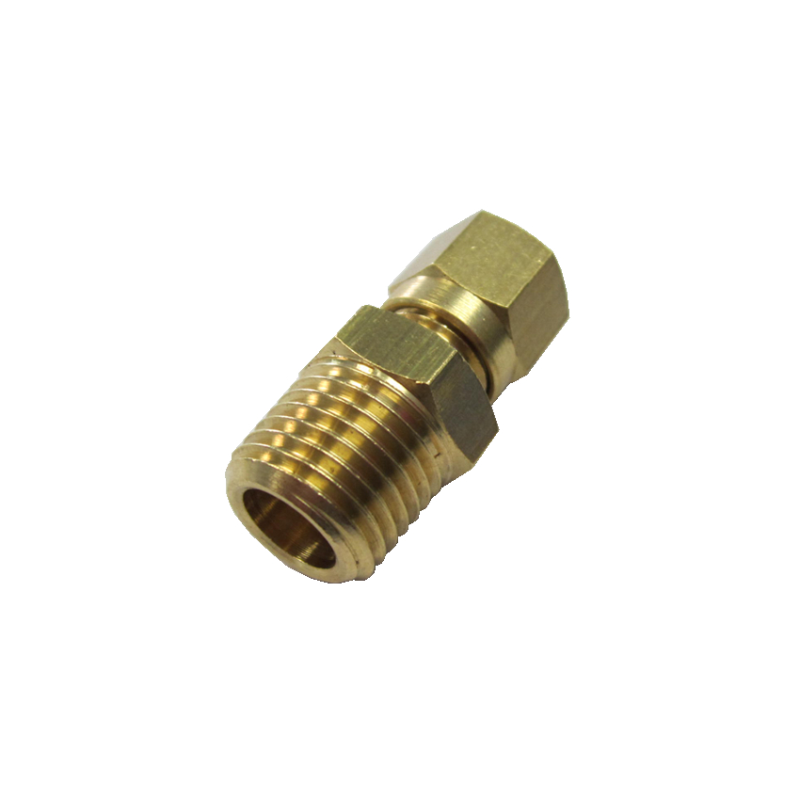

STRAIGHT MALE CONICAL UNIVERSAL
Cod: 2800

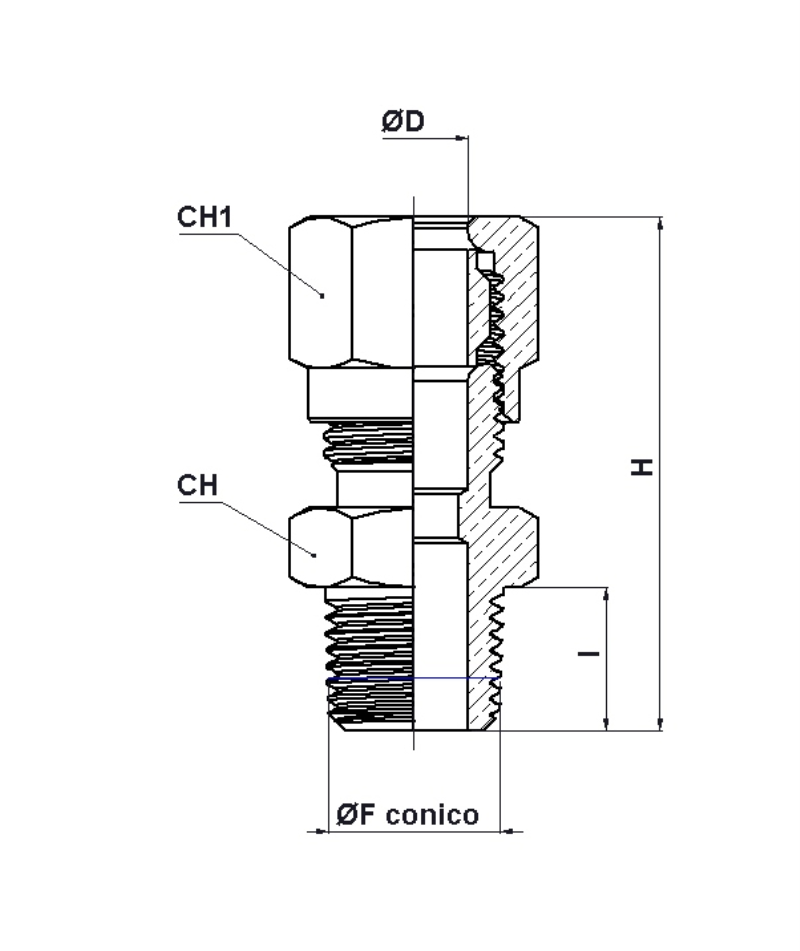

| Article | D | G | I | H | CH | CH1 |
|---|---|---|---|---|---|---|
| 28001090 | 4 | 1/8 | 8 | 27 | 10 | 10 |
| 28001220 | 6 | 1/8 | 8 | 28 | 12 | 12 |
| 28001230 | 6 | 1/4 | 11 | 32.5 | 14 | 12 |
| 28001280 | 8 | 1/8 | 8 | 29.5 | 12 | 14 |
| 28001290 | 8 | 1/4 | 11 | 33 | 14 | 14 |
| 28001300 | 8 | 3/8 | 11.5 | 33 | 17 | 14 |
| 28001350 | 10 | 1/4 | 11 | 37.5 | 17 | 19 |
| 28001360 | 10 | 3/8 | 11.5 | 38 | 17 | 19 |
| 28001370 | 10 | 1/2 | 14 | 40.5 | 22 | 19 |
| 28001400 | 12 | 3/8 | 11.5 | 39 | 19 | 22 |
| 28001410 | 12 | 1/2 | 14 | 41 | 22 | 22 |
| 28001420 | 14 | 1/2 | 14 | 42.5 | 22 | 24 |
| 28001430 | 15 | 1/2 | 14 | 42 | 22 | 24 |
| 28001450 | 16 | 1/2 | 14 | 42.5 | 24 | 27 |
| 28001470 | 18 | 1/2 | 14 | 43 | 26 | 30 |
