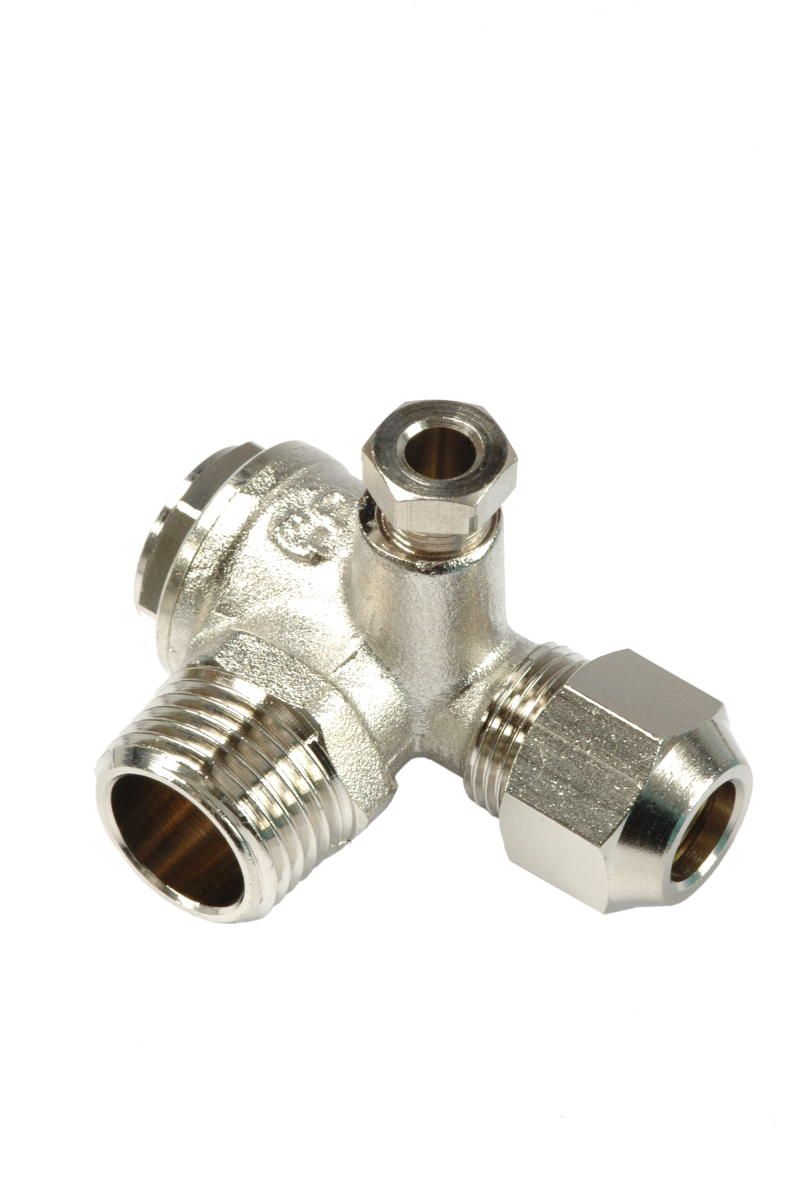

VALVOLA ORIZZONTALE MASCHIO CON BICONO
Cod: 1220

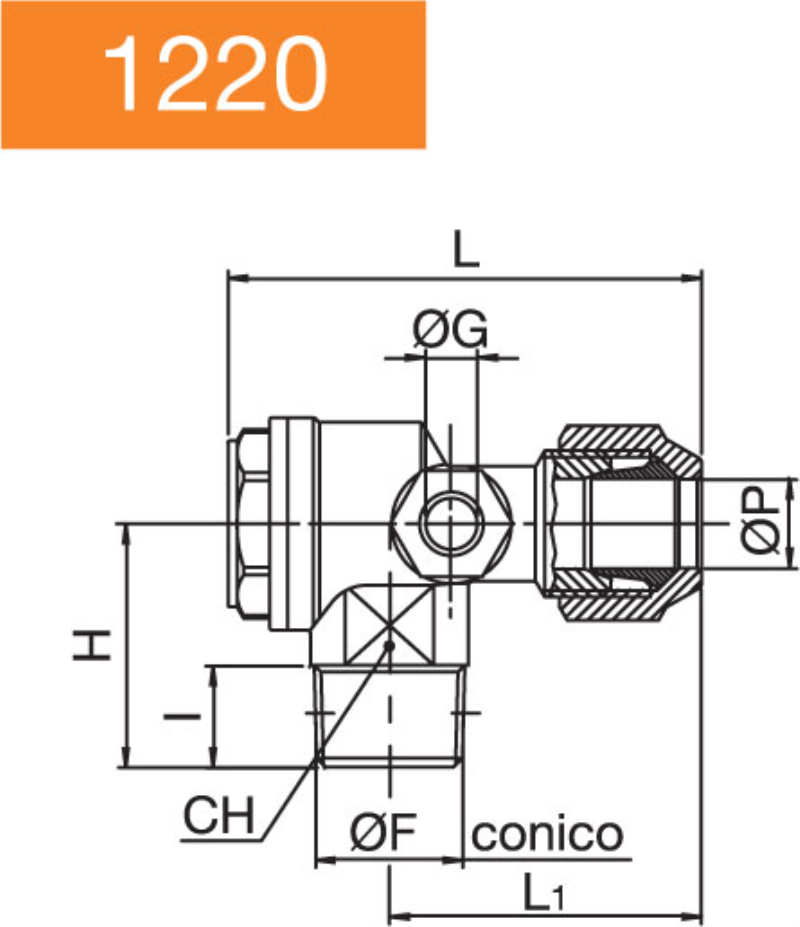

| Articolo | F | P | I | G | H | L | L1 | CH | PASTIGLIA | MOLLA | RONDELLA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12202100 | 1/4 | 10 | 11 | 6 | 27.5 | 56 | 38 | 18 | Q10 NBR | M15 | OR2068 |
| 12202200 | 3/8 | 8 | 11 | 6 | 27.5 | 58 | 40 | 18 | Q10 NBR | M15 | OR2068 |
| 12202210 | 3/8 | 10 | 11 | 6 | 27.5 | 55 | 37 | 19 | Q10 NBR | M15 | OR2068 |
| 12202270 | 1/2 | 10 | 12.5 | 6 | 29.5 | 57 | 36 | 22 | Q10 NBR | M15 | OR2075 |
| 12202281 | 1/2 | 12 | 12.5 | 6 | 29.5 | 59.5 | 38.5 | 22 | Q10 NBR | M15 | OR2075 |
| 12202290 | 1/2 | 14 | 12.5 | 6 | 30.5 | 68.5 | 46 | 22 | Q20 VITON | M20 | A15 |
| 12202300 | 1/2 | 15 | 12.5 | 6 | 30.5 | 71 | 48.5 | 22 | Q20 VITON | M20 | A15 |
| 12202360 | 3/4 | 12 | 11.5 | 6 | 32 | 69 | 44 | 28 | Q20 VITON | M20 | A15 |
| 12202370 | 3/4 | 14 | 11.5 | 6 | 32 | 69.5 | 44.5 | 28 | Q20 VITON | M20 | A15 |
| 12202380 | 3/4 | 15 | 11.5 | 6 | 32 | 70.5 | 45.5 | 28 | Q20 VITON | M20 | A15 |
