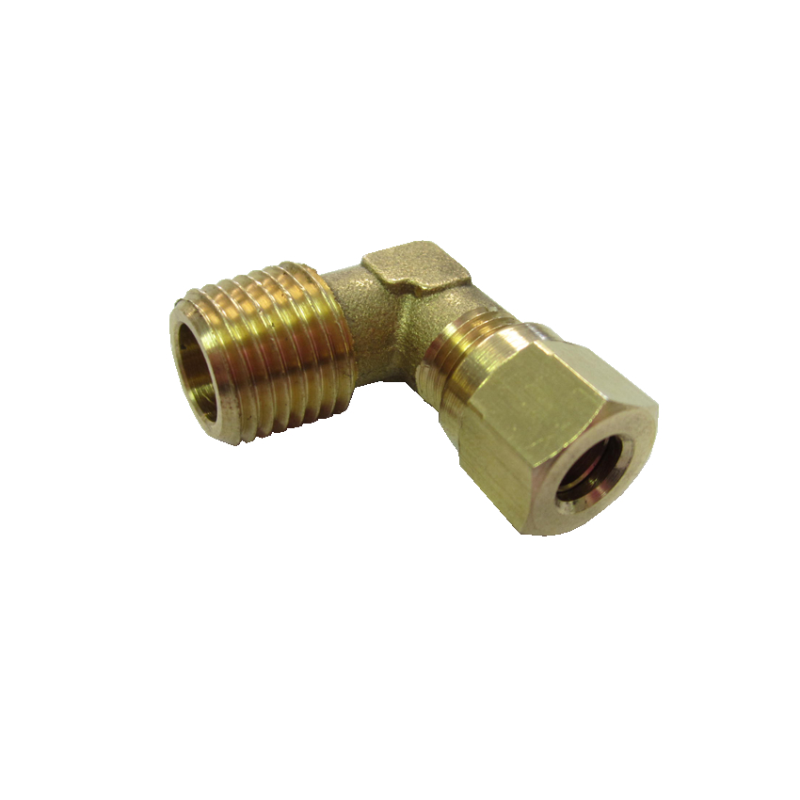

L MASCHIO CONICO UNIVERSALE
Cod: 2840

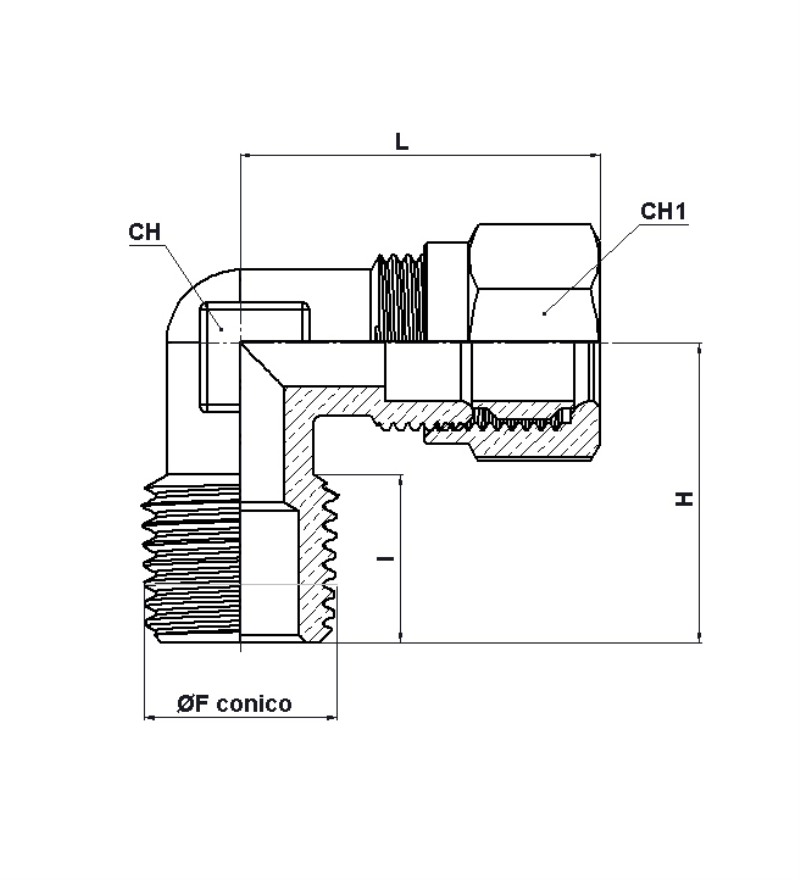

| Articolo | D | F | I | H | L | CH | CH1 |
|---|---|---|---|---|---|---|---|
| 28401090 | 4 | 1/8 | 8 | 16 | 21 | 9 | 10 |
| 28401220 | 6 | 1/8 | 8 | 16 | 22 | 9 | 12 |
| 28401230 | 6 | 1/4 | 11 | 20 | 24.5 | 11 | 12 |
| 28401280 | 8 | 1/8 | 8 | 17 | 24 | 11 | 14 |
| 28401290 | 8 | 1/4 | 11 | 20 | 24 | 13 | 14 |
| 28401300 | 8 | 3/8 | 11.5 | 24 | 27 | 13 | 14 |
| 28401350 | 10 | 1/4 | 11 | 23.5 | 32 | 13 | 19 |
| 28401360 | 10 | 3/8 | 11.5 | 24 | 32 | 13 | 19 |
| 28401370 | 10 | 1/2 | 14 | 28.5 | 34 | 15 | 19 |
| 28401400 | 12 | 3/8 | 11.5 | 25.5 | 34.5 | 15 | 22 |
| 28401410 | 12 | 1/2 | 14 | 28.5 | 34.5 | 15 | 22 |
| 28401420 | 14 | 1/2 | 14 | 30 | 38 | 17 | 24 |
| 28401430 | 15 | 1/2 | 14 | 30 | 38 | 17 | 24 |
| 28401450 | 16 | 1/2 | 14 | 31.5 | 39.5 | 19 | 27 |
| 28401470 | 18 | 1/2 | 14 | 34 | 44 | 22 | 30 |
