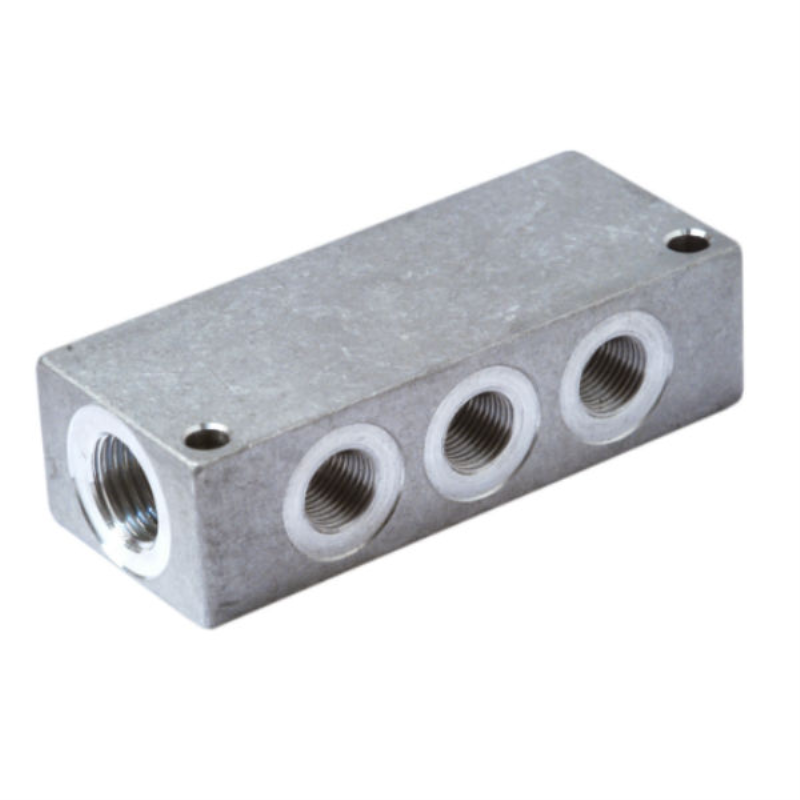

RIPARTITORE ALLUMINIO SINGOLO
Cod: 3671

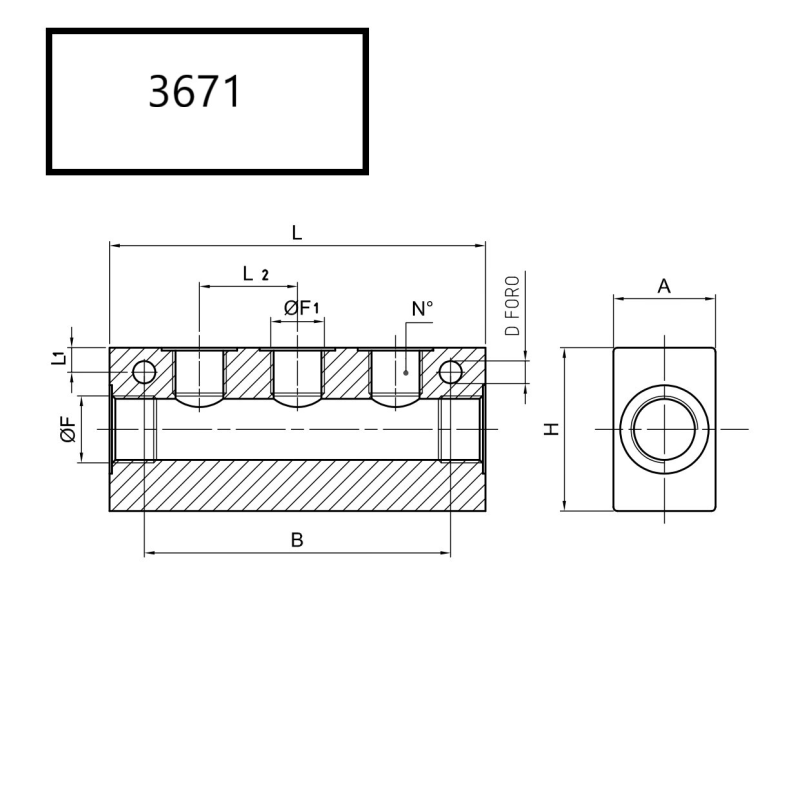

| Articolo | F | F1 | A | H | L1 | L2 | L3 | L | N° |
|---|---|---|---|---|---|---|---|---|---|
| 36715070 | 1/4 | 1/8 | 20 | 30 | 4.5 | 18 | 18 | 54 | 2 |
| 36715080 | 1/4 | 1/8 | 20 | 30 | 4.5 | 18 | 18 | 72 | 3 |
| 36715090 | 1/4 | 1/8 | 20 | 30 | 4.5 | 18 | 18 | 90 | 4 |
| 36715100 | 1/4 | 1/8 | 20 | 30 | 4.5 | 18 | 18 | 108 | 5 |
| 36715210 | 3/8 | 1/4 | 25 | 40 | 8.5 | 24 | 22 | 68 | 2 |
| 36715220 | 3/8 | 1/4 | 25 | 40 | 8.5 | 24 | 22 | 92 | 3 |
| 36715230 | 3/8 | 1/4 | 25 | 40 | 8.5 | 24 | 22 | 116 | 4 |
| 36715240 | 3/8 | 1/4 | 25 | 40 | 8.5 | 24 | 22 | 140 | 5 |
| Temperatura min./max. | -20°C | +130°C | |||||||
| Pressione | 12 bar |
